Hyundai Creta: Button Engine Start System / Components and components location

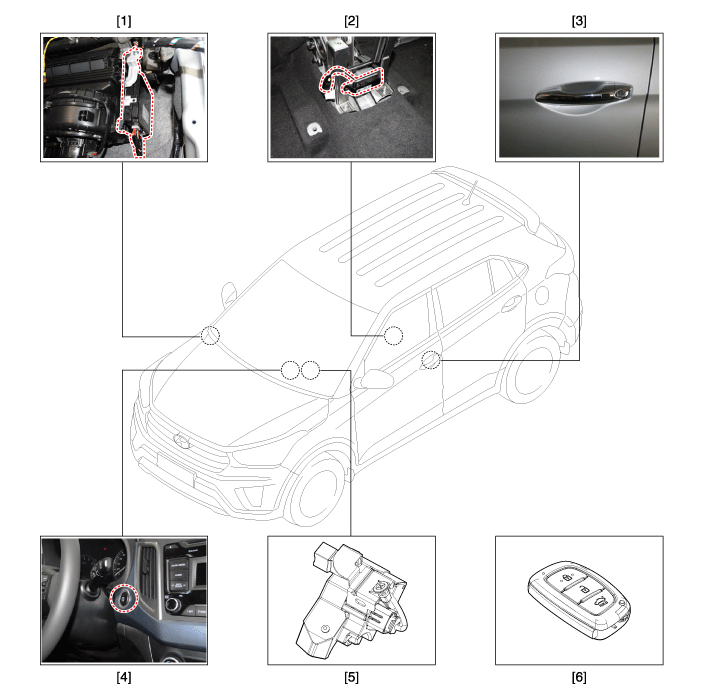

Component Location

1. Smart key unit
2. Interior antenna 1
3. Door outside handle
4. Start Stop Button (SSB)
5. Electronic steering column lock (ESCL)
6. FOB key

Button Engine Start System
...

Schematic diagrams
Circuit Diagram ...
