Hyundai Creta: Floor Console / Console Armrest

Components and components location

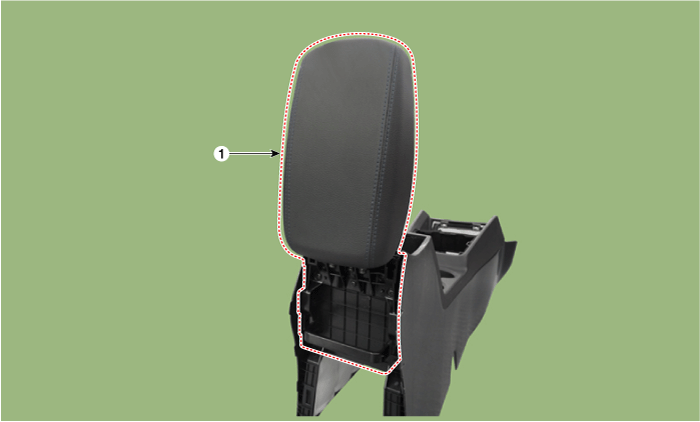

Component Location

1. Console armrest

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the floor console assembly. (Refer to Floor Console - "Floor Console Assembly")

2.	After loosening the mounting screws, then remove the console armrest (A) by using a screw driver.

To install, reverse the removal procedure.

•	Replace any damaged clips.
