Hyundai Creta: Crash Pad / Cowl Cross Bar Assembly

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Cowl Cross Bar Assembly

Components and components location

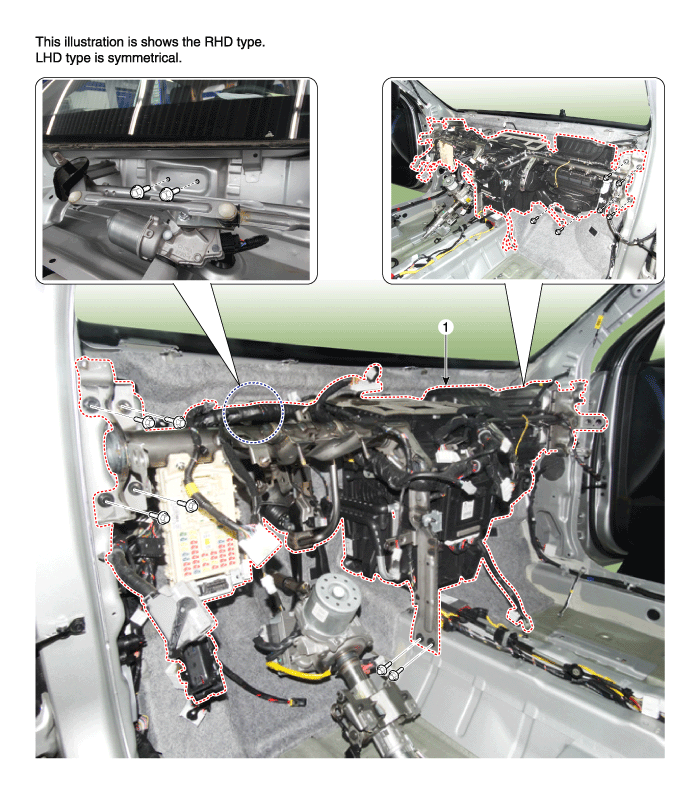

Component Location

1. Cowl cross bar assembly

Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recovery/recycling/charging station.
3.
When the engine is cool, drain the engine coolant from the radiator.
(Refer to Engine Mechanical System - “Coolant”)
4.
Remove the cowl top cover.
(Refer to "Cowl Top Cover")
5.
Disconnect the expansion valve from the evaporator core.
(Refer to Heating,Ventilation And Air Conditioning - "Heater Unit")
6.
Disconnect the inlet and outlet heater hoses from the heater unit.
(Refer to Heating,Ventilation And Air Conditioning - "Heater Unit")
7.
Loosen the cowl cross member mounting bolts.
8.
Remove both sides of front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
9.
Remove the main crash pad assembly.
(Refer to Crash Pad - "Main Crash Pad Assembly")
10.
Disconnect the steering column connectors.
(Refer to Steering System - "Steering Column and Shaft")
11.
Down the steering column after loosening the mounting bolts.
(Refer to Steering System - "Steering Column and Shaft")
12.
Remove the shift lever assembly.
(Refer to Automatic Transaxle System - "Shift lever")
13.
Disconnect the passenger compartment junction box connectors (A).
14.
Disconnect the multi box connectors (A).
[Driver's]

[Passenger's]

15.
Disconnect the airbag control module (SRSCM) connector (A).
16.
Disconnect the connector (A) and the mounting clips in the front pillar.
[Driver's]

[Passenger's]

17.
Separate the radiator assembly to obtain space for remove the air guard.
18.
Remover the rear air duct (A) after detaching the nuts.
19.
Remove the drain hose (A).
20.

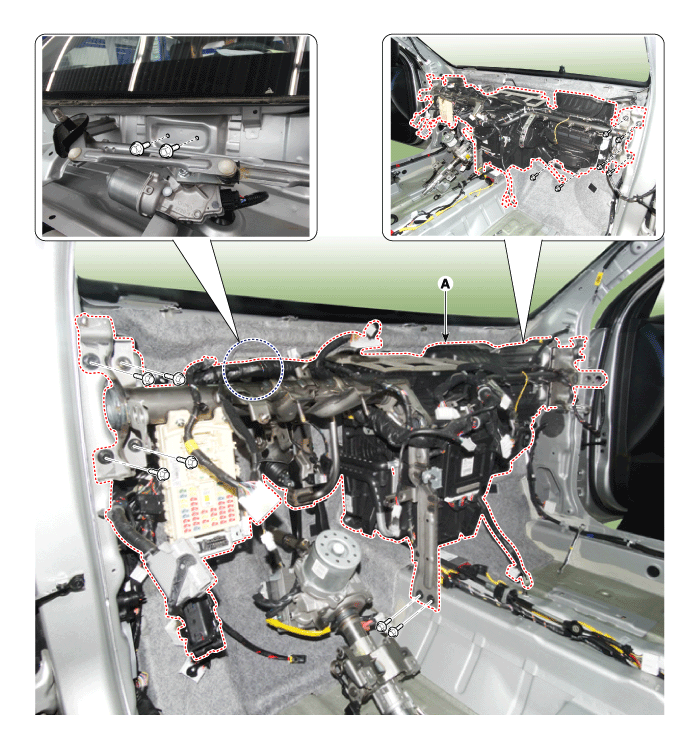

After loosening the nuts and bolts remove the cowl cross bar and heater & blower unit (A) together.
21.
Disconnect the heater & blower unit connectors.
(1)
Disconnect the mode control actuator connector (A), joint connector (B) and then remove the wiring mounting clips.
(2)
Disconnect the blower motor connector (A) and then remove the wiring mounting clips.
(3)
Disconnect the intake actuator (A), cluster ionizer connector (B), auto defogging sensor connector (C) and then remove the wiring mounting clips.
(4)
Remove the passenger's side shower duct (A) after loosening the screw.
(5)
Disconnect the temperature control actuator (A), evaporator temperature sensor connector (B), power mosfet connector (C) and then remove the wiring mounting clips.
22.
Remove the heater and blower unit (A) from the cowl cross bar (B) after loosening the mounting nuts.
23.
To install, reverse the removal procedure.

•
Make sure the crash pad fits onto the guide pins correctly.
•
Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
•
Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
•
Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
