Hyundai Creta: Engine Control System / Crankshaft Position Sensor (CKPS)
Description and operation
Crankshaft Position Sensor (CKPS) detects the crankshaft position and is one
of the most important sensors of the engine control system. If there is no CKPS
signal input, fuel is not supplied.That is, vehicle can't run without CKPS signal.
This sensor is installed on the cylinder block or the transaxle housing and
generates alternating current by magnetic flux field which is made by the sensor
and the target wheel when engine runs.
The target wheel consists of 58 slots and 2 missing slots on 360 degrees CA
(Crank Angle).
Specifications
Item
|
Specification
|
Coil Resistance (Ω)
|
774 ~ 946 [20°C (68°F)]
|
Troubleshooting
Schematic diagrams

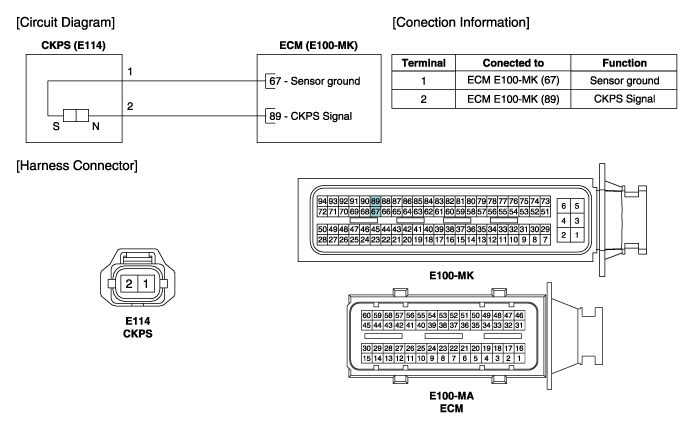

(M/T)

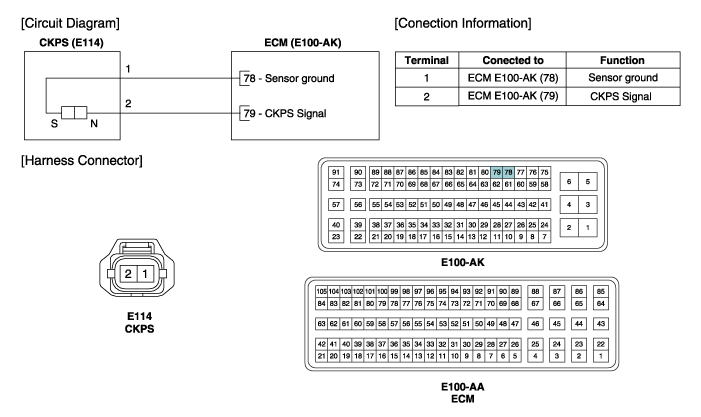

(A/T)
Repair procedures
| 1. |

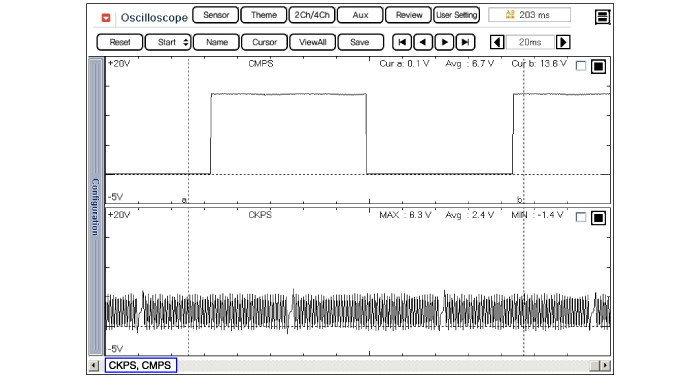

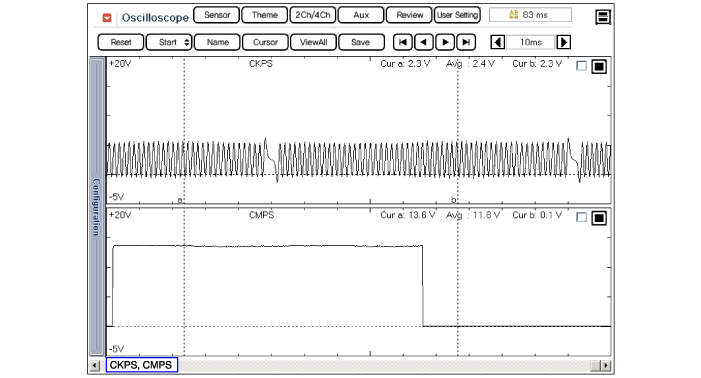

Check signal waveform of CKPS and CMPS using a GDS.
|
Specification : Refer to "Waveform"
|
|
| 1. |
Turn the ignition switch OFF and disconnect the battery negative (-)
terminal.
|
| 2. |
Disconnect the crankshaft position sensor connector (A).
|
| 3. |
Remove the mounting bolt (B), and then remove the crankshaft position
sensor.
|
| • |
Install the component with the specified torques.
|
| • |
Note that internal damage may occur when the component is dropped.
In this case, use it after inspecting.
|
|
| • |
Apply the engine oil to the O-ring.
|
|
| • |
Insert the sensor in the installation hole and be careful not
to damage when installation.
|
|
| • |
Be careful not to damage the sensor housing and the connector.
|
| • |
Be careful not to damage the O-ring.
|
|
| 1. |
Install in the reverse order of removal.
|
Crankshaft position sensor mounting bolt :
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
|
|
