Description

•	Engine coolant is used for circulating heat in order to heat and cool the transaxle oil.

•	Prevents over heating of the transaxle oil while the vehicle is moving.

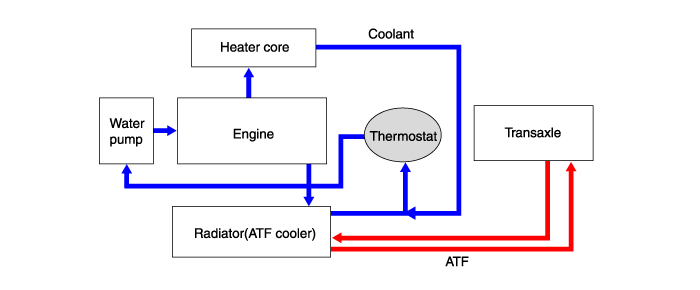

Coolant Flow

Automatic Transaxle Cooling System

...

Oil Cooler

Components and components location Components Location 1. ATF cooler 2. ATF cooler hose 3. Clamp 4. Automatic transaxle Repair procedures ...
