Hyundai Creta: Automatic Transaxle Control System / Description and operation

Hyundai Creta GS 2014-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Description and operation

Description

•	Automatic transaxle system relies on various measurement data to determine the current control status and extrapolate the necessary compensation values.

•	These values are used to control the actuators and achieve the desired control output.

•	If a problem with the drivetrain, including the transaxle, has been identified, perform self-diagnosis and basic transaxle inspection (oil and fluid inspection) and then check the control system's components using the diagnosis tool.

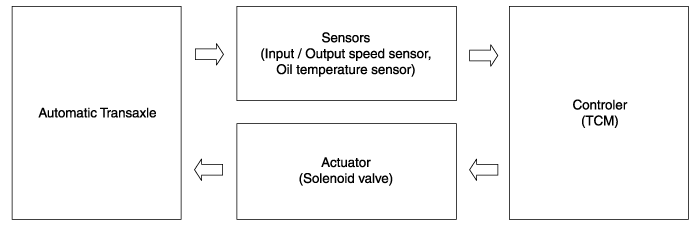

Control System Composition

Automatic Transaxle Control System

...

Components and components location

Components Location(1) 1. Automatic transaxle 2. Output speed sensor 3. Input speed sensor 4. Solenoid valve connector 5. Oil temperature sensor 6. Solenoid ...
