Hyundai Creta: Your vehicle at a glance / Engine compartment

Hyundai Creta GS 2014-2019 Owners Manual / Your vehicle at a glance / Engine compartment

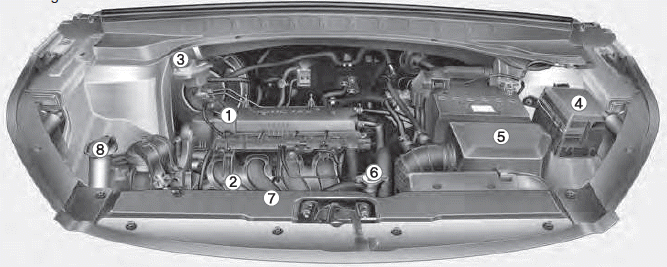

■ Gasoline Engine (Gamma 1.6 MPI) - Right Hand Drive

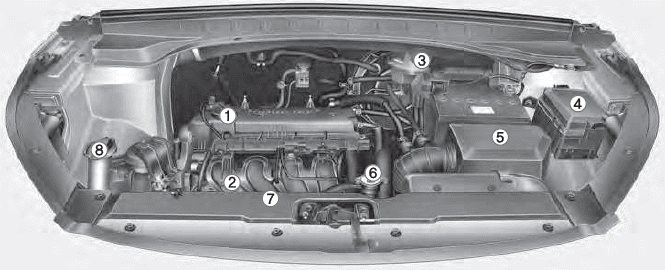

■ Gasoline Engine (Gamma 1.6 MPI) - Left Hand Drive

1. Engine oil filler cap
2. Engine oil dipstick
3. Brake/clutch* fluid reservoir
4. Fuse box
5. Air cleaner
6. Radiator cap
7. Engine coolant reservoir
8. Windshield washer fluid reservoir

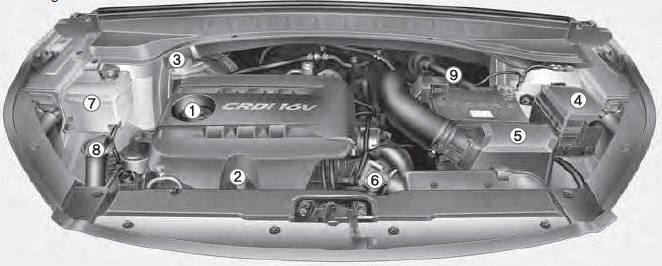

■ Diesel Engine (U2 1.4/1.6 TCI) - Right Hand Drive

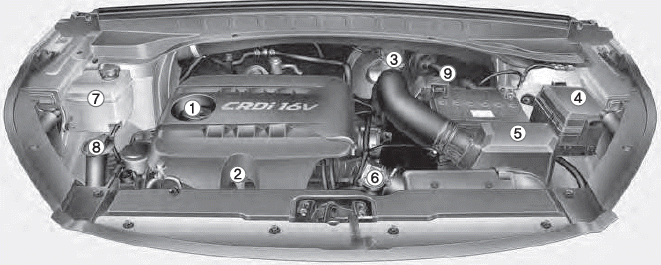

■ Diesel Engine (U2 1.4/1.6 TCI) - Left Hand Drive

1. Engine oil filler cap
2. Engine oil dipstick
3. Brake/clutch* fluid reservoir
4. Fuse box
5. Air cleaner
6. Radiator cap
7. Engine coolant reservoir
8. Windshield washer fluid reservoir
9. Fuel filter
