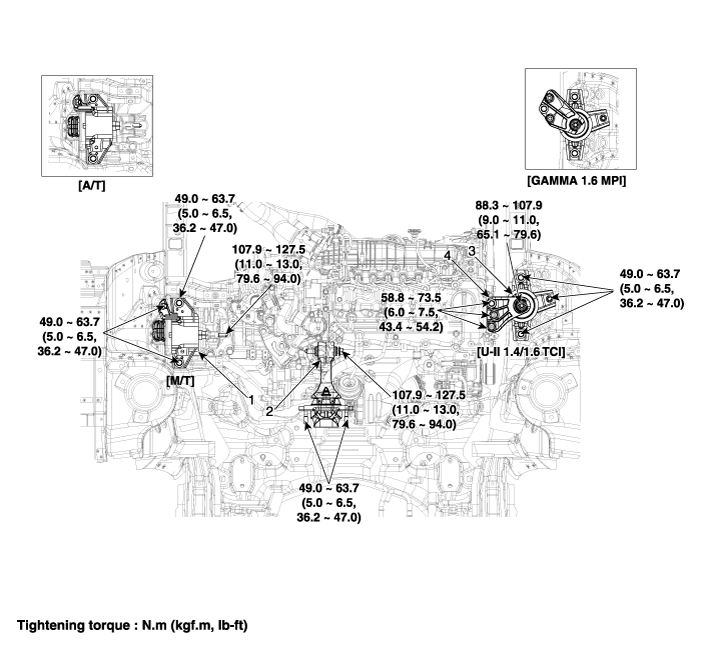

Components and components location

Components

1. Transaxle mounting bracket
2. Roll rod bracket

3. Engine mounting bracket
4. Engine mounting support bracket

Repair procedures

Removal and Installation

Roll rod Bracket

Remove the roll rod bracket (A).

Tightening torque :

Nut (B) :

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Bolt (C) :

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Remove the roll rod mounting support bracket (A).

Tightening torque :

49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

3.	Install in the reverse order of removal.

Engine mounting bracket

1.	Disconnect the battery "-" terminal.

2.	Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")

Install the jack to the edge of upper oil pan to support the engine.

•	Insert the rubber block between jack and oil pan.

Remove the engine mounting support bracket (A).

Tightening torque :

Bolt, Nut (B) :

58.8 ~ 73.5 N.m (6.0 ~ 7.5 kgf.m, 43.3 ~ 54.2 lb-ft)

Nut (C) :

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Remove the engine mounting bracket (A).

Tightening torque :

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

6.	Install in the reverse order of removal.

Transaxle mounting bracket

1.	Disconnect the battery "-" terminal.

2.	Remove the air cleaner assembly. (Refer to Intake And Exhaust System - "Air Cleaner")

3.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

4.	Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover ")

5.	Install the jack to the edge of transaxle.

6.	Remove the cover (A).

Remove the transaxle support bracket mounting bolt (A).

Tightening torque :

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Remove the transaxle mounting bracket (A).

Tightening torque :

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

9.	Install in the reverse order of removal.
