Hyundai Creta: Specifications & Consumer information / Engine number

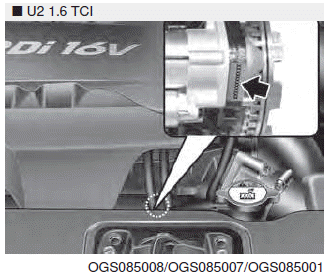

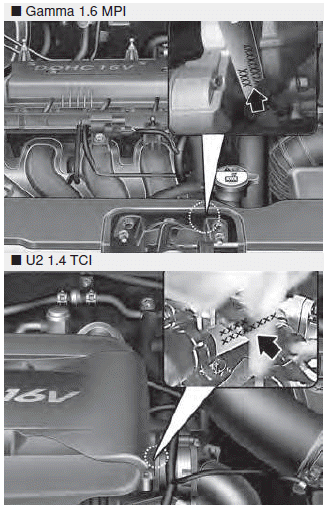

The engine number is stamped on the engine block as shown in the drawing.
Tire specification and pressure label
The tires supplied on your new vehicle
are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side (or front passenger’s side) center
pi ...
Air conditioner compressor label
A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, supplier
part number, production number,
refrigerant (1) and refrigerant oil (2).
...
