Hyundai Creta: Engine And Transaxle Assembly / Engine Room Under Cover

Hyundai Creta GS 2014-2019 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Room Under Cover

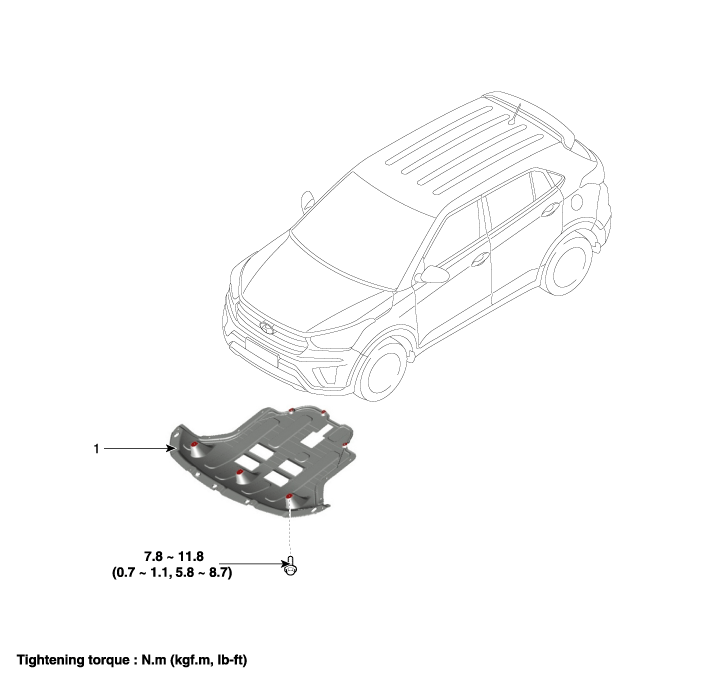

Components and components location

Components

1. Engine room side cover

Repair procedures

Removal and Installation

Engine room under cover front pannel

Remove the engine room under cover (A).

Tightening torque :

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

2.	Install in the reverse order of removal.

Engine Cover: Repair procedures

Removal and Installation 1. Remove the engine cover (A). 2. Install in the reverse order of removal. ...
