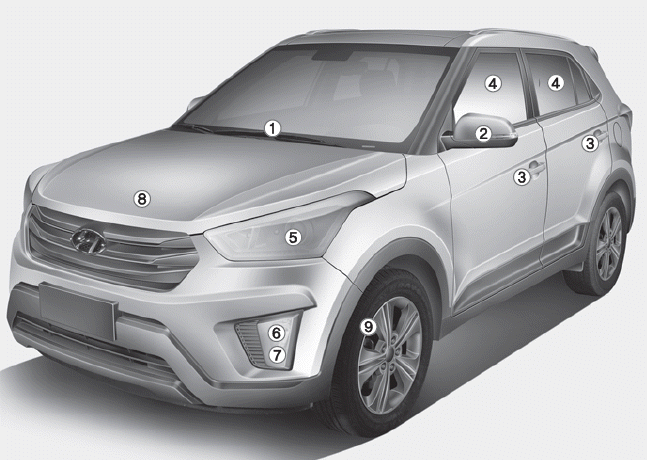

Hyundai Creta: Your vehicle at a glance / Exterior overview

1. Front windshield wiper blades
2. Outside rearview mirror
3. Door
4. Windows
5. Head light
6. Front fog light
7. Daytime running light
8. Hood
9. Tires and wheels

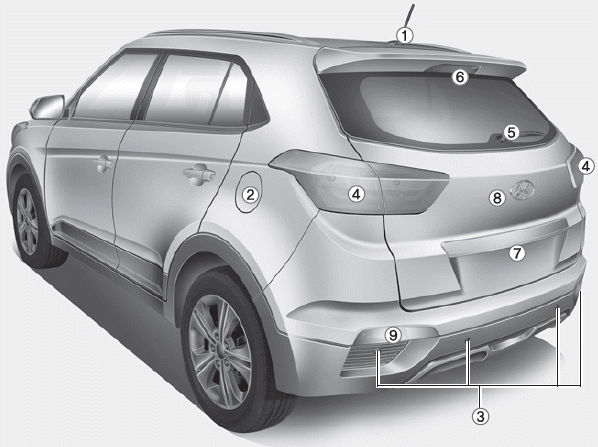

■ Rear view

1. Antenna
2. Fuel filler lid
3. Rear parking assist system
4. Rear combination lamp
5. Rear window wiper blade
6. High mounted stop lamp
7. Rearview camera
8. Tailgate
9. Rear fog light
