Hyundai Creta: Front Bumper / Front Bumper Cover

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Cover

Components and components location

Component Location

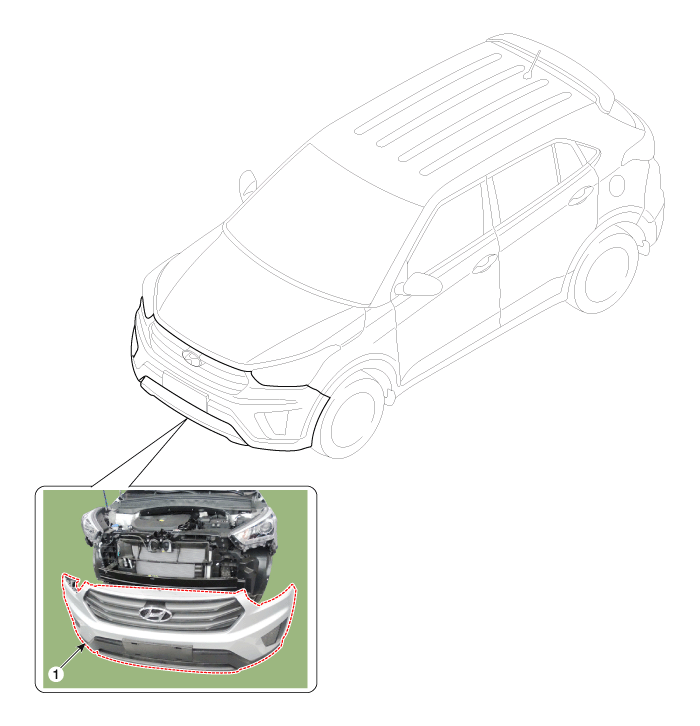

1. Front bumper cover

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Loosen the radiator upper cover mounting bolts.

2.	Loosen the front bumper lower mounting bolts.

3.	After loosening the front bumper side's mounting screw, then disconnect the side's.

4.	Disconnect the fog lamp connector (A).

5.	Remove the front bumper cover (A).

To install, reverse the removal procedure.

•	Make sure the connector is plugged in properly.

•	Replace any damaged clips.
