Hyundai Creta: Front Door / Front Door Latch

Hyundai Creta GS 2014-2024 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Latch

Components and components location

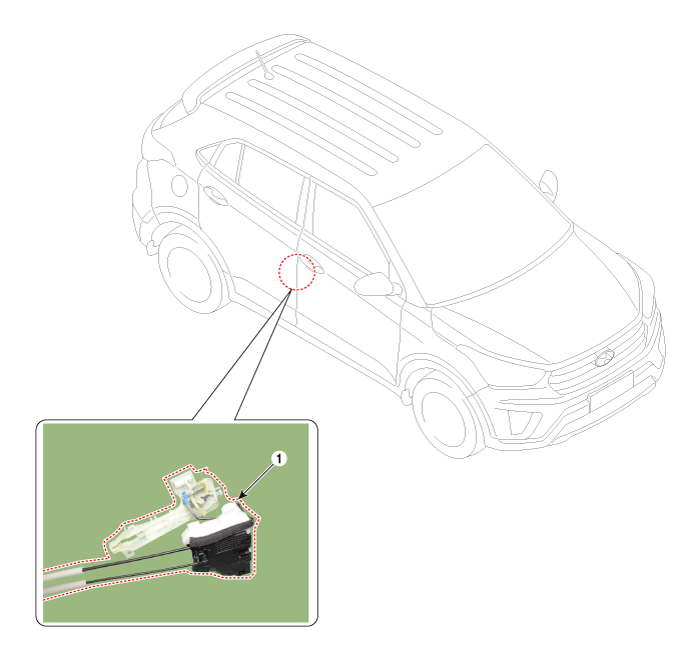

Component Location

1. Front door latch

Repair procedures

Replacement

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

2.	Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass")

3.	Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Handle")

4.	Loosen the front door latch mounting screws.

5.	Disconnect the front door latch connector (A).

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
