Hyundai Creta: Front Door / Front Door Outside Handle

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle

Components and components location

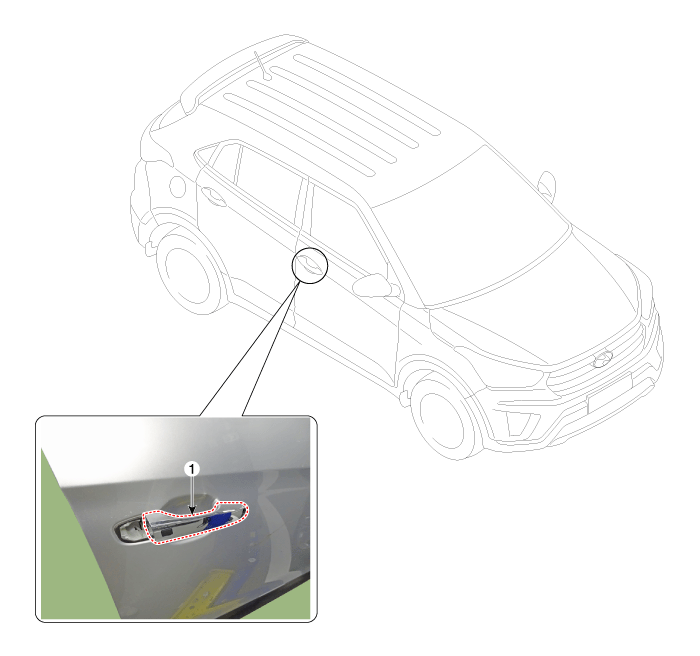

Component Location

1. Front door outside handle

Repair procedures

Replacement

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

2.	Remove the hole plug (B).

After loosening the mounting bolt, then remove the front door outside handle cover (A).

Tightening torque :

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

4.	Disconnect the front door outside handle connector (A).

5.	Remove the front door outside handle (A) by sliding it rearward.

To install, reverse the removal procedure.

•	Be sure to install the outside handle pad (A) onto between the outside handle and the door panel.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.
