Hyundai Creta: Front Door / Front Door Power Window Regulator

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Power Window Regulator

Components and components location

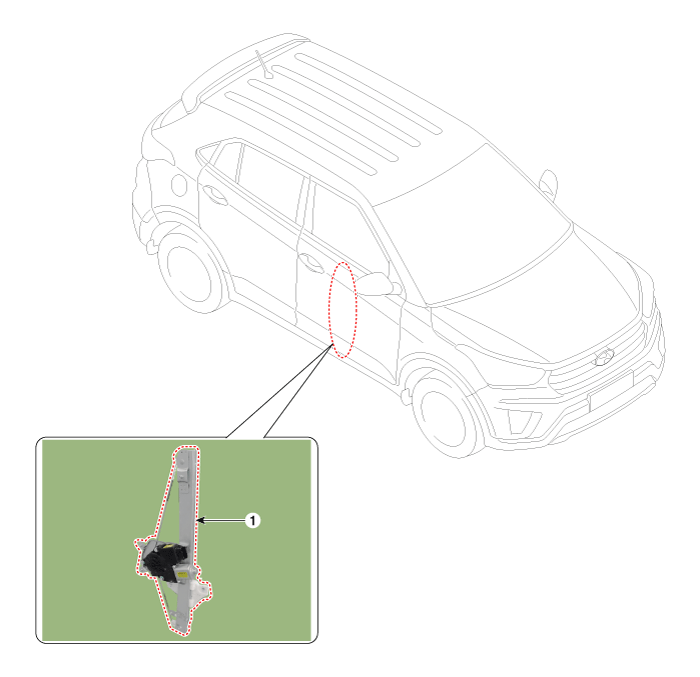

Components Location

1. Front door power window regulator

Repair procedures

Replacement

1.	Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass")

2.	Loosen the front door power window regulator mounting nuts.

3.	Disconnect the front power window motor connector (A).

4.	After loosening the mounting screws, remove the front door power window motor. (Refer to Body Electrical System - "Power Window Motor")

To install, reverse the removal procedure.

•	Grease should be applied to areas where there is rotational parts and springs.

•	Roll the glass up and down to see if it move freely without binding.
