Hyundai Creta: Front Door / Front Door Trim

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Trim

Components and components location

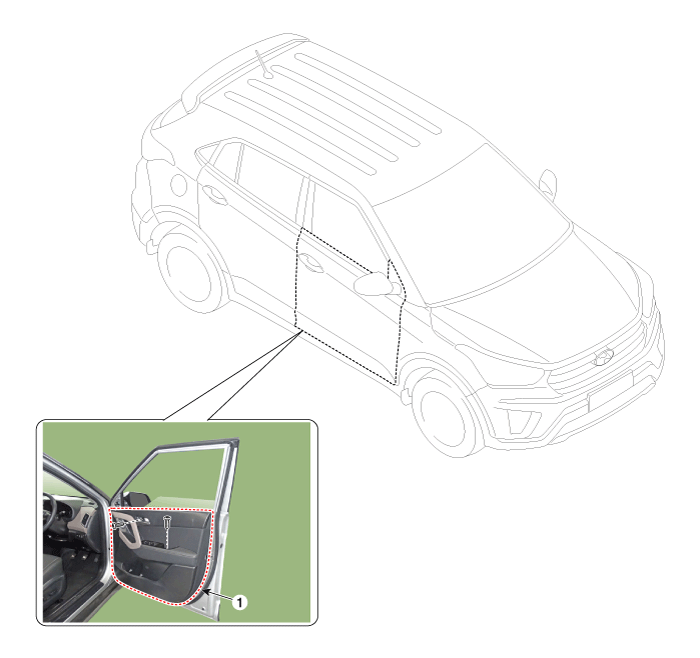

Component Location

1. Front door trim

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Be careful not to scratch the door trim and other parts.

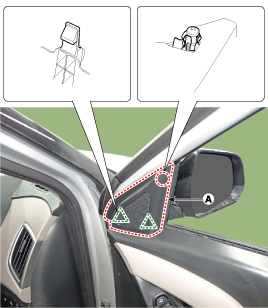

1.	Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.	Disconnect the tweeter speaker connector (A).

3.	Disconnect the front door inside handle cap (A).

4.	Remove the front door pull handle hole plug (A).

5.	After loosening the mounting screws, then remove the front door trim (A).

6.	Remove the front door inside handle cage (A).

7.	Disconnect the outside rear view mirror switch connector (A) and power window switch connector (B).

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
