Hyundai Creta: Interior Trim / Front Pillar Trim

Hyundai Creta GS 2014-2023 Service Manual / Body (Interior and Exterior) / Interior Trim / Front Pillar Trim

Components and components location

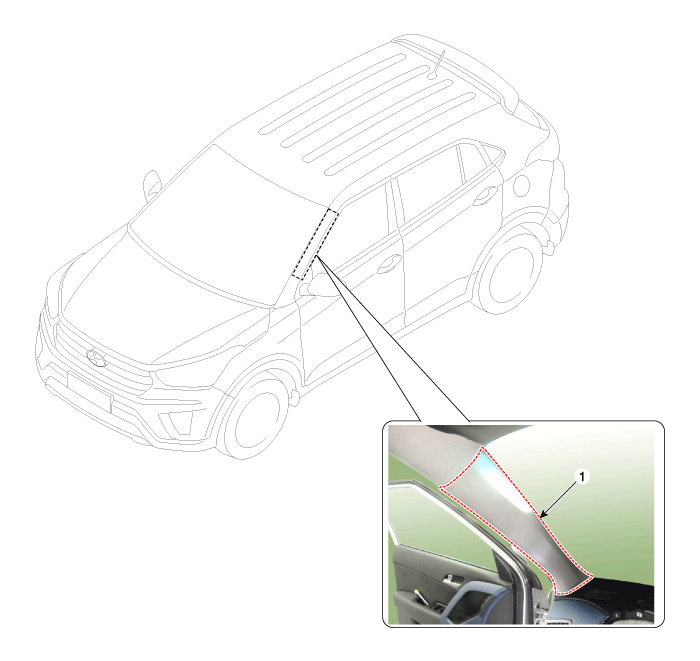

Component Location

1. Front pillar trim

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Using a screwdriver or remover, remove the front pillar trim (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
