Hyundai Creta: Front Seat Belt / Front Seat Belt Pretensioner

Hyundai Creta GS 2014-2024 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Pretensioner

Components and components location

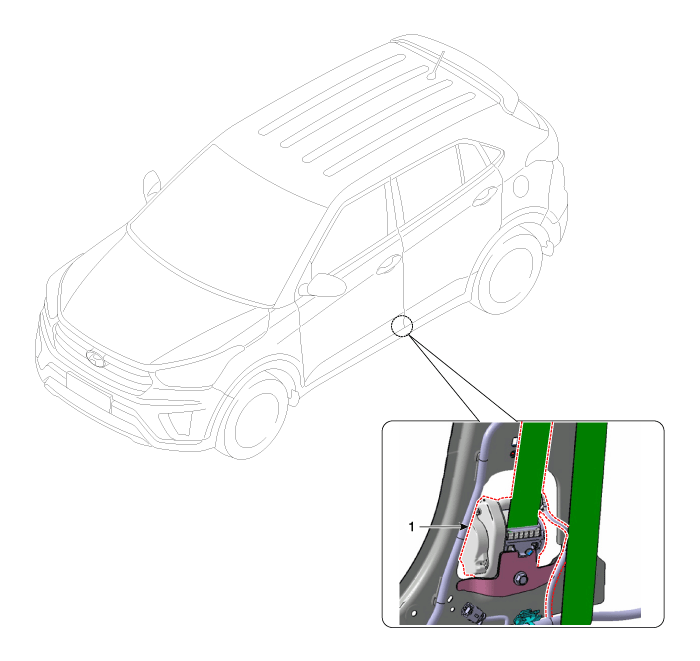

Component Location

1. Front seat belt pretensioner

Repair procedures

Replacement

•	When installing the belt, make sure not to damage the pretensioner.

1.	Remove the center pillar lower trim. (Refer to Interior Trim - "Center Pillar Trim")

2.	Remove the center pillar upper trim. (Refer to Interior Trim - "Center Pillar Trim")

After loosening the mounting bolt, then remove the front seat belt upper anchor (A).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

Disconnect the connector (A) after loosening the mounting bolt and removing the front safety belt retractor (B).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

[India - General : Standard]

[General : Option]

To install, reverse the removal procedure.

•	Make sure the connector is plugged in properly.

•	Replace any damaged clips.
