Hyundai Creta: Front Seat / Front Seat Shield Inner Cover

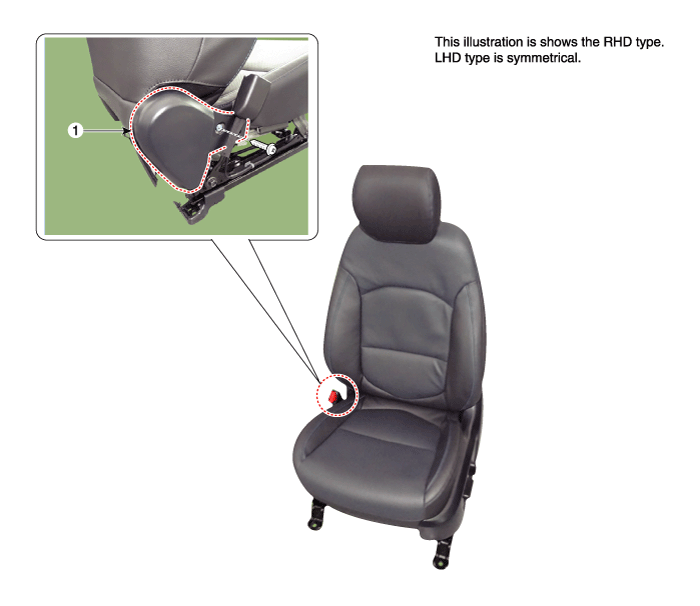

Components and components location
1. Front seat shield inner cover
|
|
Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
| 2. |
After loosening the mounting screw, then remove the front seat shield
inner cover (A).
|
| 3. |
To install, reverse the removal procedure.
| •
|
Replace any damaged clips.
|
|
|
Components and components location
Component Location
1. Front seat shield outer cover
Repair procedures
Replacement
...
Components and components location
Component Location
1. Front seat back cover
Repair procedures
Replacement
...
