Hyundai Creta: Body Side Molding / Front Wheel Guard: Repair procedures

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Body Side Molding / Front Wheel Guard: Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	Remove the front tire.

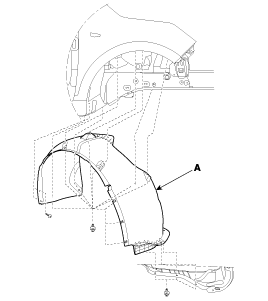

2.	After loosening the mounting clips and screws, then remove the front wheel guard (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
