Hyundai Creta: Windshield Wiper/Washer / Front Wiper Motor

Hyundai Creta GS 2014-2025 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor

Components and components location

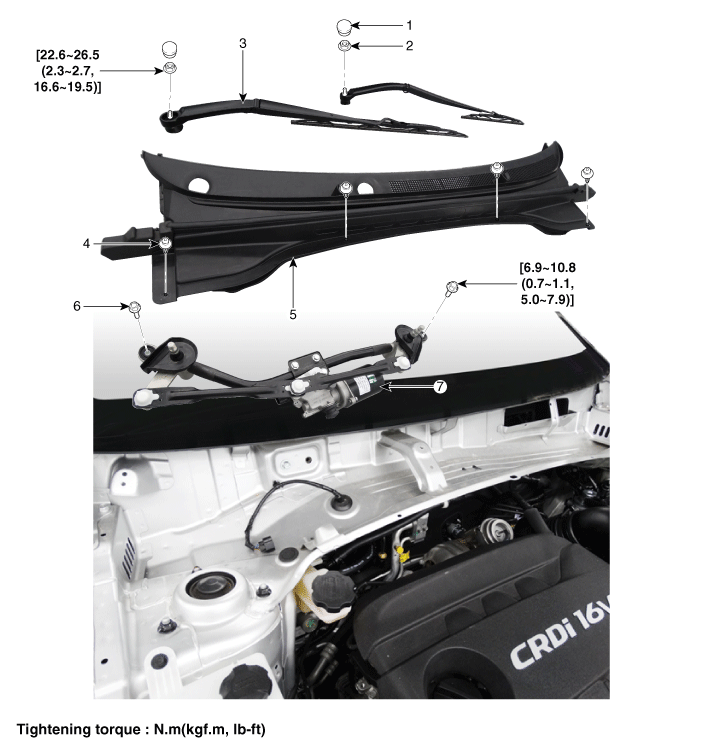

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet

5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector

Repair procedures

Removal

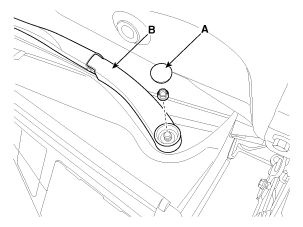

1.	Loosen the windshield wiper arm nut after removing a wiper cap (A).

2.	Remove the windshield wiper arm and blade (B)

3.	If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm.

4.	Remove the cowl top cover. (Refer to Body - "Cowl Top Cover")

5.	Remove the windshield wiper motor and linkage assembly (A) after removing 2 bolts nad disconnecting the wiper motor connector (B).

Hold the wiper motor crank arm and remove the upper linkage (A) from the wiper motor crank arm.

•	Before removing the wiper motor and linkage assembly, make sure that the linkage is stoped at auto stop position.

•	To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages.

•	Be careful not to bend the linkage.

Remove the lower linkage (A) from the wiper motor crank arm.

•	To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages.

•	Be careful not to bend the linkage.

8.	Remove the wiper motor arm (A) from the wiper motor.

9.	Remove the wiper motor (A) from the tube after removing the mounting bolts.

Installation

1.	Install the wiper motor.

Install the crank arm.

Tightening torque :

14.7 ~ 19.6 Nm (1.5 ~ 2.0 kgf.m, 10.8 ~ 14.5 lbf.ft)

•	To install the wiper motor crank arm, make sure that the linkage is aligned with the crank arm in straight line and set the angle of each linkages exactly.

Install the lower and upper linkage to the wiper motor crank arm.

•	To install the wiper motor crank arm, make sure that the linkage is aligned with the crank arm in straight line and set the angle of each linkages exactly.

•	Be careful not to bend the linkage.

Install the wiper motor and linkage assembly and then connect the wiper motor connector.

Tightening torque :

6.9 ~ 10.8 Nm (0.7 ~ 1.1 kgf.m, 5.0 ~ 7.9 lbf.ft)

5.	Install the cowl top cover.

Install the windshield wiper arm and blade.

Tightening torque :

22.5 ~ 26.5 Nm (2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lbf.ft)

–	The windshield wiper motor must be cycled to make sure that it is in the park position. If necessary, adjust the wiper arm and blade.

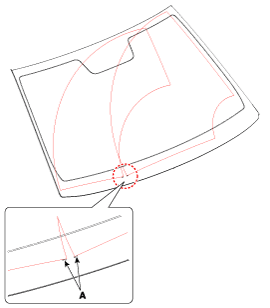

7.	Install the wiper arm and blade to the specified position. A : Auto stop position (Blade)

Inspection

Speed Operation Check

1.	Disconnect the connector (A) from the wiper motor.

Check that the motor operates at low or high speed as below table.

•	Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a good cleaner or mild detergent, and rinse thoroughly with clean water.
