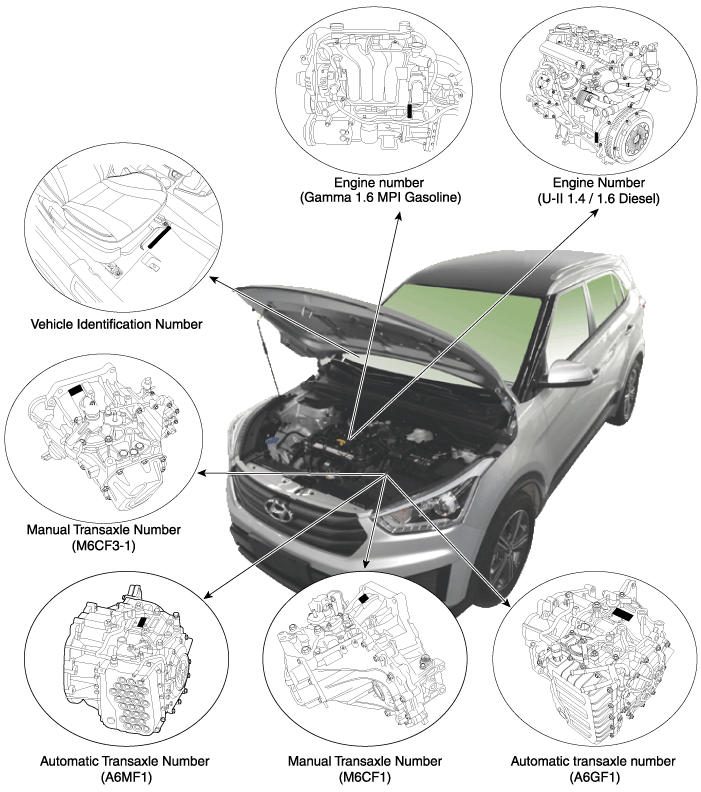

Identification Number

Identification Number Description
Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
–
MAL : Passenger vehicle or MPV(Multipurpose Passenger vehicle)/SUV(Sports Utility vehicle)/RV(Recreational vehicle)
–
NLH : Passenger vehicle
–
NLJ : Van
2.
Vehicle line
–
C : CRETA
3.
Model & Series
–
1 : Low grade (L)
–
2 : Middle-Low grade (GL)
–
3 : Middle grade (GLS, JSL, TAX)
–
4 : Middle-High grade (HGS)
–
5 : High grade (TOP)
4.
Body/Cabin type, Gross Vehicle Weight Rating, Chassis
–
1 : Limousine
–
2 : Sedan - 2 door
–
3 : Sedan - 3 door
–
4 : Sedan - 4 door
–
5 : Sedan - 5 door
–
6 : Coupe
–
7 : Convertible
–
8 : Wagon
–
9 : Commercial Van
–
0 : Pick-Up
5.
Restraint system, Brake system
–
0 : Both side - None
–
1 : Both side - Active belt
–
2 : Both side - Passive belt
6.
Engine type
–
C : Gasoline engine 1.6 (GAMMA 1.6 MPI)
–
R : Diesel engine 1.4 (U-Ⅱ)
–
U : Diesel engine 1.6 (U-Ⅱ)
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
–
A : LHD & MT
–
B : LHD & AT
–
C : LHD & MT+Transfer
–
D : LHD & AT+Transfer
–
E : LHD & CVT
–
F : LHD & Reducer
–
G : LHD & DCT
–
H : LHD & DCT + Transfer
–
L : RHD & MT
–
M : RHD & AT
–
N : RHD & MT+Transfer
–
S : RHD & AT+Transfer
–
T : RHD & CVT
–
U : RHD & Reducer
–
V : RHD & DCT
–
W : RHD & DCT + Transfer
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
–
Check digit : 0 ~ 9, ×
8.
Model year
–
G : 2016, H : 2017, J : 2018, K : 2019…
9.
Plant of production
–
A : Asan (Korea)
–
B : Beijing (China)
–
C : Cheonju (Korea)
–
H : Alabama (U.S.A)
–
M : Chennai (India)
–
U : Ulsan (Korea)
–
Z : Izmit (Turkey)
–
J : Ostrava (Czech)
–
P : Piracicaba (Brazil)
–
R : Saint petersburg (Russia)
10.
Vehicle production sequence number
–
000001 ~ 999999
Engine Number

1.
Engine fuel
–
G : Gasoline
–
D : Diesel
2.
Engine range
–
4 : 4 cycle 4 cylinder
3.
Engine development order and capacity
–
F : GAMMA engine (Gasoline)
–
F : U engine (Diesel)
4.
Engine Capacity
–
G : 1591cc (Gamma MPI engine)
–
C : 1396cc (U - Ⅱ TCI engine)
–
B : 1582cc (U - Ⅱ TCI engine)
5.
Production Year
–
G : 2016, H : 2017, J : 2018, K : 2019…
6.
Plant of production
–
A : Asan (Korea)
–
B : Beijing (China)
–
H : Hwasung (Korea)
–
K : Montgomery (U.S.A)
–
M : Chennai (India)
–
P : Poseung (Korea)
–
S : Sohari (Korea)
–
T : Izmit (Turkey)
–
U : Ulsan (Korea)
–
W : Shandong (China)
–
Z : Zilina (Slovakia)
–
1 : Yancheng (China)
7.
Engine production sequence number
–
000001 ~ 999999
Transaxle Number
Automatic (A6MF1)

1.
Model
–
EK : A6MF1
2.
Model year
–
G : 2016, H : 2017, J : 2018, K : 2019…
3.
Final gear ratio
–
U : 3.510
4.
Detailed classification
–
C : U-II 1.6 TCI (A6MF1)
5.
Plant of production
–
2 : Powertech Plant2
–
4 : Powertech Plant
–
U : Ulsan Plant 1
–
S : Ulsan Plant 2
–
N : Ulsan Plant 3
–
H : Hwasung
6.
Transaxle production sequence number
–
000001 ~ 999999
Automatic (A6GF1)

1.
Model
–
NA : A6GF1
2.
Model year
–
G : 2016, H : 2017, J : 2018, K : 2019…
3.
Final gear ratio
–
U : 3.957
4.
Detailed classification
–
O : GAMMA 1.6 MPI (A6GF1)
5.
Plant of production
–
2 : Powertech Plant2
–
4 : Powertech Plant
–
U : Ulsan Plant 1
–
S : Ulsan Plant 2
–
N : Ulsan Plant 3
–
H : Hwasung
6.
Transaxle production sequence number
–
000001 ~ 999999
Manual (M6CF1)

1.
Assembly code of plant
2.
Model year
–
G : 2016, H : 2017, J : 2018, K : 2019…
3.
Plant of production
–
B : Beijing (China)
–
H : Hwasung (Korea)
–
J : Ostrava (Czech)
–
M : Chennai (India)
–
U : Ulsan (Korea)
4.
Transaxle production sequence number
–
000001 ~ 999999
Manual (M6CF3-1)

1.
Model
–
W : M6CF3-1
2.
Model year
–
G : 2016, H : 2017, J : 2018, K : 2019…
3.
Plant of production
–
B : Beijing (China)
–
H : Hwasung (Korea)
–
J : Ostrava (Czech)
–
M : Chennai (India)
–
U : Ulsan (Korea)
4.
Speed
5.
Spare
6.
Final gear ratio
–
A : 3.471
–
B : 3.833
–
C : 3.941
–
D : 4.059
–
E : 4.188
–
F : 4.267
–
G : 4.400
–
H : 3.706
–
J : 3.647
–
K : 4.333
–
L : 4.467
–
M : 4.563
–
N : 3.250
–
P : 3.048
–
R : 3.722
7.
Transaxle production sequence number
–
000001 ~ 999999
Paint Code
Code
Color
X5B
Phantom black
R6D
Pearl Beige
V3G
Stardust
MZH
Phantom black
RHM
Sleek Silver
P4N
Earth Brown
Y3N
Midas Gold
W5R
Wine Red
X2R
Red Passion
U7U
Mystic Blue
PSW
Pola White
R8Y
Retro Shine Yellow
