Hyundai Creta: Crash Pad / Glove Box Housing

Hyundai Creta GS 2014-2024 Service Manual / Body (Interior and Exterior) / Crash Pad / Glove Box Housing

Components and components location

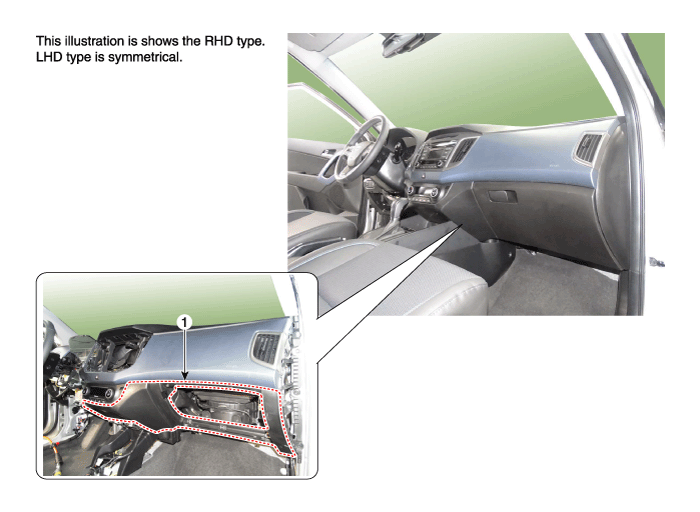

Component Location

1. Glove box housing

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the cowl side trim. (Refer to Interior Trim - "Cowl Side Trim")

2.	Disconnect the pins (A) and then remove the glove box (B).

3.	After loosening the mounting screws, then remove the glove box housing (A).

To install, reverse the removal procedure.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips.
