Hyundai Creta: Front Seat Belt / Height Adjust

Components and components location

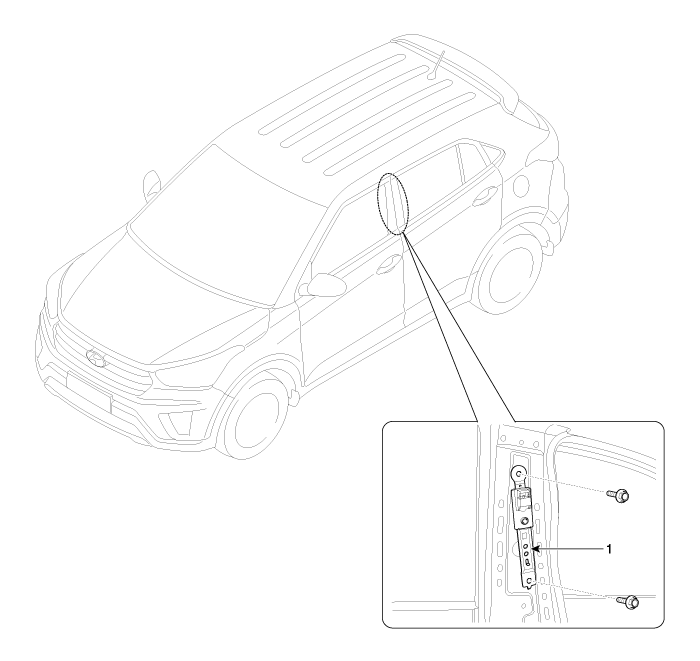

Component Location

1. Height adjust


Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.
After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

3.
To install, reverse the removal procedure.

Replace any damaged clips.
