Hyundai Creta: Hood / Hood Latch Release Handle

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

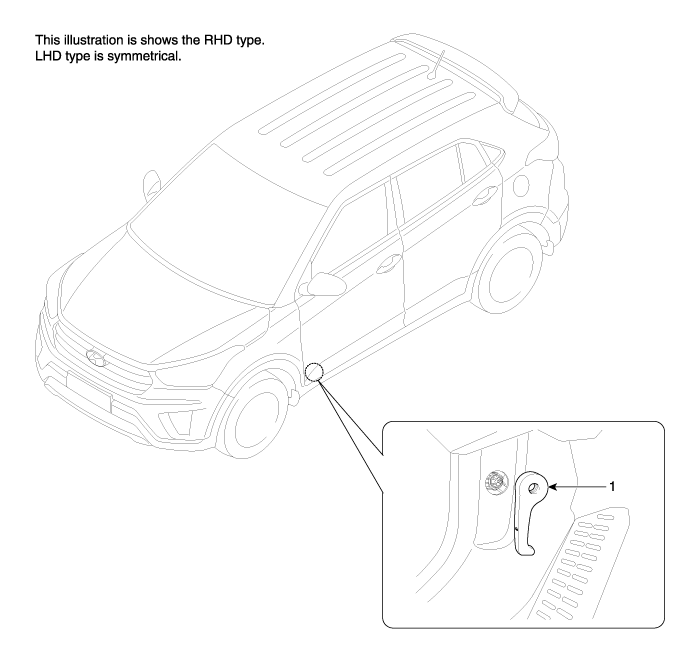

Component Location

1. Hood latch release handle

Repair procedures

Replacement

Using a screwdriver or remover, remove the hood release handle (A).

•	Use a 6mm hex bit to press the center until the handle easily pulls off the post.

To install, reverse the removal procedure.

•	Make sure the hood latch cable is connected properly.

•	Make sure the hood locks/unlocks and opens / closes properly.
