Components and components location

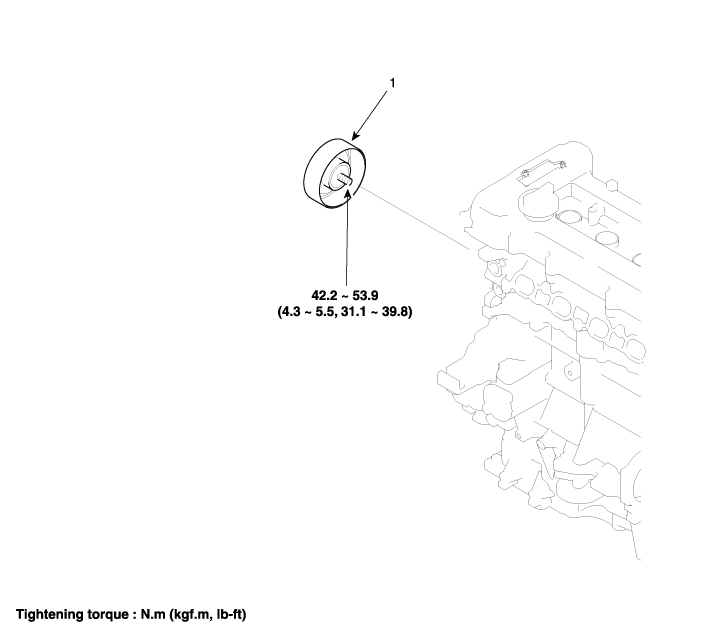

Components

1. Idler

Repair procedures

Removal and Installation

1.	Remove the drive belt. (Refer to Timing System - "Dreve Belt")

Remove the drive belt idler (A).

Tightening torque :

42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

3.	Install in the reverse order of removal.

Inspection

Check the idler for excessive oil leakage, abnormal rotation or vibration. Replace if necessary.
