Hyundai Creta GS 2014-2023 Service Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror

Components and components location

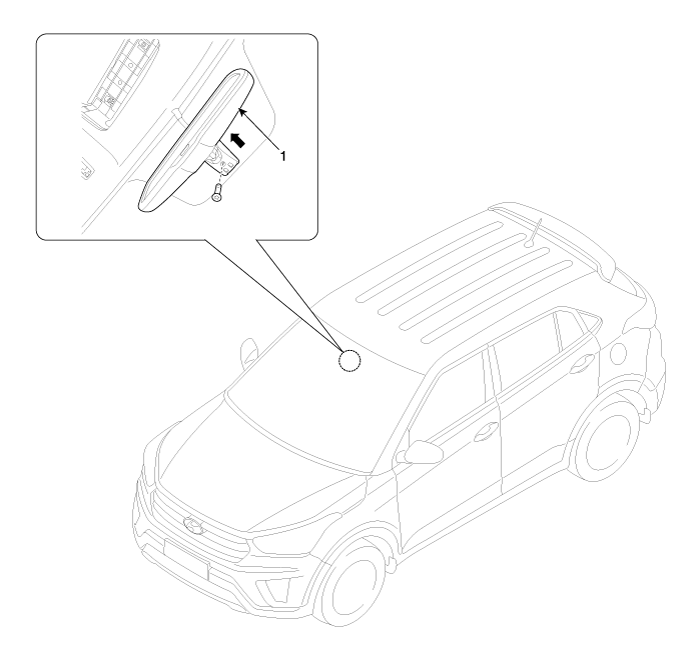

Component Location

1. Inside rear view mirror


Repair procedures

Replacement
[Manual Mirror]

•
Put on gloves to protect your hands.
1.
Loosen the inside rear view mirror mounting screw (C).
2.
Push the inside rear view mirror base (B) up to remove the inside rear view mirror assembly (A).
3.
To install, reverse the removal procedure.
[ECM Mirror]

•
Put on gloves to protect your hands.
1.
Remove the ECM mirror cover (A).
2.
Disconnect the ECM mirror connector (B).
3.
Loosen the ECM mirror mounting screw.
4.
Push the ECM mirror base up to remove the ECM mirror assembly (A).
5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
