WARNING
Do not use the interior lights when driving in the dark. The interior lights may obscure your view and cause an accident.
NOTICE
Do not use the interior lights for extended periods when the engine is turned off or the battery will discharge.
The interior lamps will automatically go off approximately 20 minutes after the engine is turned off and the doors closed. If a door is opened, the lamp will go off 40 minutes after the engine is turned off. If the doors are locked by the remote key or smart key and the vehicle enters the armed stage of the theft alarm system, the lamps will go off five seconds later.

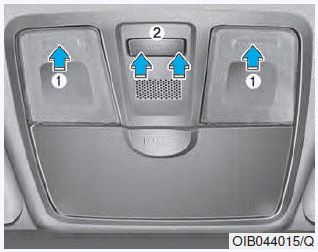

(1) Front Map Lamp
(2) Front Room Lamp
Front Map Lamp:
Press either the right or left lens to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.
Front Room Lamp:
The Front Room Lamp Switch activates the front and rear room lamps when the switch is pressed in either of the three positions indicated below:
: The front or rear room lamps
come on when the front or rear
doors are opened if the engine
is running or not. When doors
are unlocked by the remote
key or smart key, the front and
rear lamps come on for
approximately 15 seconds as
long as any door is not
opened. The front and rear
room lamps go out gradually
after approximately 15 seconds
if the door is closed.
However, if the ignition switch
is in the ON position or all
doors are locked, the front and
rear lamps will turn off immediately.
If a door is opened with
the ignition switch in the ACC
position or the LOCK/OFF
position, the front and rear
lamps stay on for about 20
minutes. However, if a door is
opened with the ignition switch
in the ON position, the lamps
stays on continuously.
: With the Front Room Lamp in
this position, the front and
rear room lamps remain on
at all times.
: With the Front Room Lamp in
this position the front and
rear room lamps remain off
at all times.
Information
When the map lamp (1) is turned ON by pressing the lens, the map lamp will not turn off even if the front room lamp switch is in the OFF position.

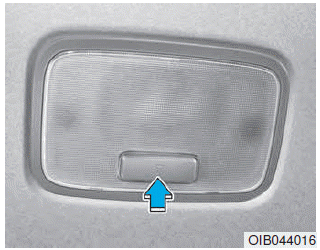

Rear Door Lamp Switch:
Press this switch to turn the room lamp on and off.
NOTICE
Do not leave the lamp switches on for an extended period of time when the engine is turned off.

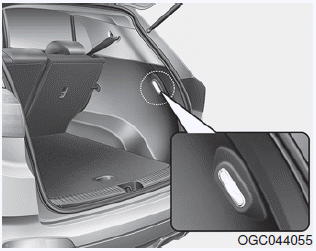

The luggage room lamp comes on when the tailgate is opened.
NOTICE
The luggage room lamp comes on as long as the tailgate is open. To prevent unnecessary charging system drain, close the tailgate securely after using the luggage room.
