Hyundai Creta: Your vehicle at a glance / Interior overview

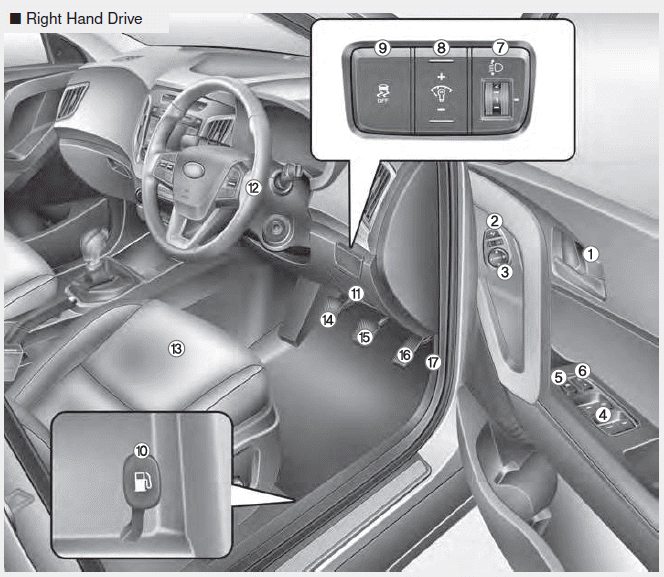

â– Right Hand Drive
1. Door lock/unlock button
2. Outside rearview mirror folding
switch
3. Outside rearview mirror control
switch
4. Power window switches
5. Power window lock switch
6. Central door lock switch
7. Headlight leveling device
8. Instrument panel illumination
control switch
9. ESC OFF switch
10. Fuel filler door opener
11. Fuse box
12. Steering wheel
13. Seat
14. Clutch pedal
15. Brake pedal
16. Accelerator pedal
17. Hood release lever

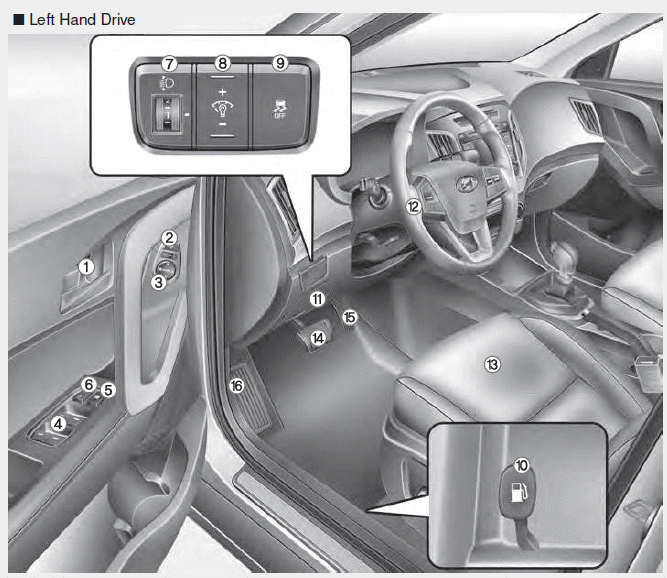

â– Left Hand Drive
1. Door lock/unlock button
2. Outside rearview mirror folding
switch
3. Outside rearview mirror control
switch
4. Power window switches
5. Power window lock switch
6. Central door lock switch
7. Headlight leveling device
8. Instrument panel illumination
control switch
9. ESC OFF switch
10. Fuel filler door opener
11. Fuse box
12. Steering wheel
13. Seat
14. Brake pedal
15. Accelerator pedal
16. Hood release lever
Exterior overview
1. Front windshield wiper blades
2. Outside rearview mirror
3. Door
4. Windows
5. Head light
6. Front fog light
7. Daytime running light
8. Hood
9. Tires and wheels
â– Rear view
...
Instrument panel overview
â– Right Hand Drive
1. Light control/Turn signals
2. Steering wheel audio controls
3. Instrument cluster
4. Horn
5. Driver's front air bag
6. Wiper/Washer
7. Trip mode switch*/Crui ...
