Hyundai Creta: Interior Trim / Luggage Side Trim

Components and components location

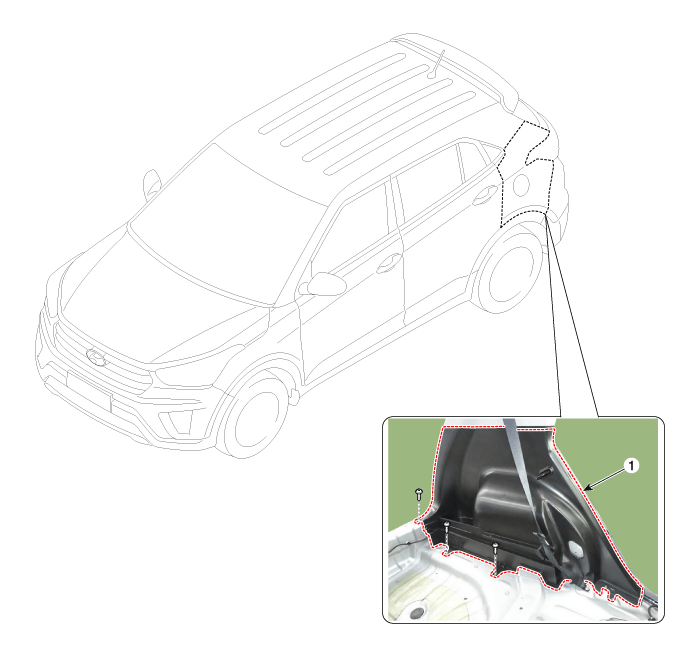

Component Location

1. Luggage side trim


Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
4.
Remove the rear transverse trim.
(Refer to Interior Trim - "Rear Transverse Trim")
5.
After loosening the mounting bolts, then remove the rear seat folding bracket (A).

6.
To install, reverse the removal procedure.

Replace any damaged clips.
