Hyundai Creta: Audio / Mic: Repair procedures
| Inspection |
| 1. |
Disconnector the negative (-) battery terminal.
|
| 2. |

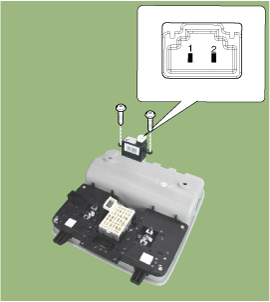

Remove the mounting screws (2EA).
And then remove the overhead console (A).
|
| 3. |
Remove the overhead console after disconnect the connector (A).
|
| 4. |
Check the continuity of between terminals.
|
AUX(Auxiliary) Jack
Schematic diagrams
Circuit Diagram
