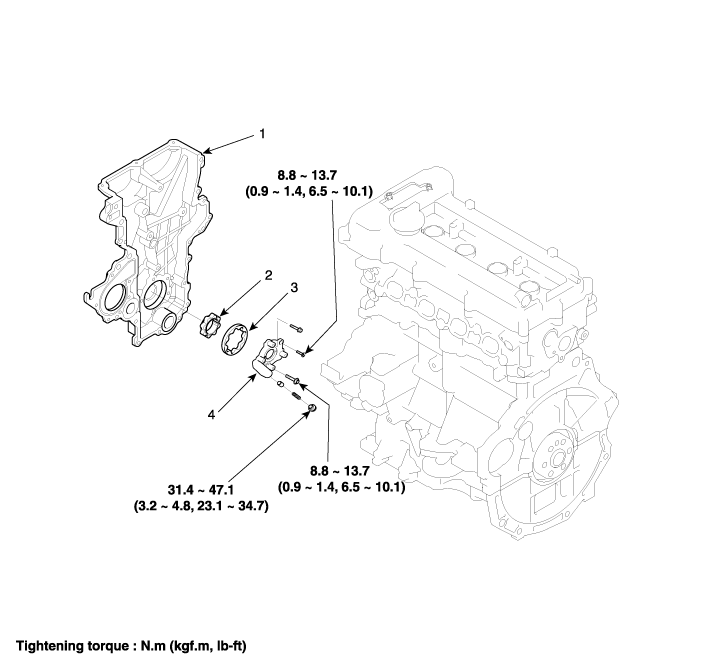

Components and components location

Components

1. Timing chain cover
2. Inner rotor

3. Outer rotor
4. Pump cover

Repair procedures

Removal and Installation

1.	Remove the timing chain cover. (Refer to Timing System - "Timing Chain Cover")

Remove the pump cover (A).

Tightening torque :

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

3.	Remove the inner rotor (B) and outer rotor (C).

4.	Install in the reverse order of removal.
