Hyundai Creta: Hydraulic System / Oil Pump
Description and operation
| Description |
| • |
The oil pump is built-in as a single unit with the 26 Brake chamber.
|
| • |
Rotation of the pump builds the hydraulic pressure needed for the lubrication
of the various parts of the transaxle and operation of the clutch and
brakes.
|
| • |
The oil also circulates through the torque converter and the cooler.
|

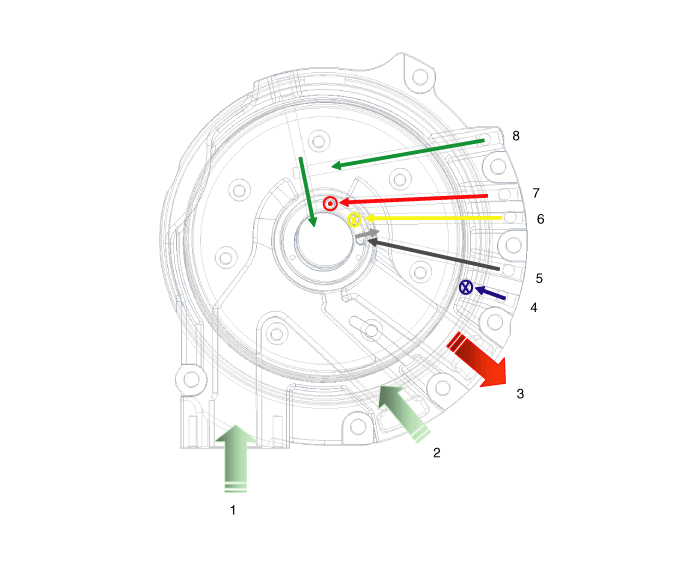

Operation flow of the mechanical oil pump
| 1. Inhale (Oil filter) 2. Inhale (Valve body) 3. Outlet 4. 26/B operation pressure |
5. 35R/C operation pressure 6. Lubrication 7. Lock up clutch operation pressure 8. Lock up clutch cancellation |
Components and components location

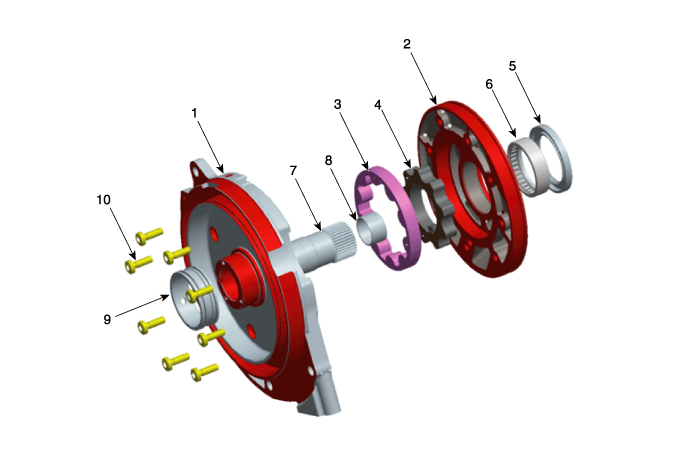

| Components |
| 1. Reaction shaft support assembly 2. Oil pump housing 3. Driven gear 4. Drive gear 5. Oil seal |
6. Bearing-housing 7. Reaction shaft 8. Bush-Reaction shaft 9. Sleeve 10. Flange bolt |
Repair procedures
| Repair procedures |
Dissembly and reassembly procedures of the oil pump, refer to the overhaul
manual.
|
Components and components location
Components Location
1. Automatic
transaxle
2. Oil filter
3. Mechanical oil pump
...
Fluid
Components and components location
Components Location
1. Automatic transaxle
2. Drain plug gasket
3. Drain plug
4. ATF level check plug
5. ATF level chec ...
