Hyundai Creta: Fuel filler door / Opening the fuel filler door
The fuel filler door must be opened from inside the vehicle by pulling up the fuel filler door opener.
1. Stop the engine.

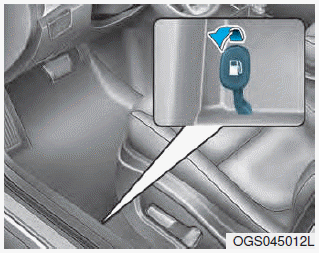

2. Pull the fuel filler door opener up.

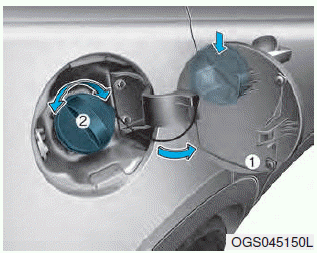

3. Pull the fuel filler door out (1) to fully open.
4. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a hissing noise as the pressure inside the tank equalizes.
5. Place the cap on the fuel filler door.
Fuel filler door
...
Closing the fuel filler door
1. To install the fuel tank cap (2), turn
it clockwise until it “clicks” once.
This indicates that the cap is
securely tightened.
2. Close the fuel filler door (1) and
push it lightly and ...
