Hyundai Creta: Mirror / Outside Rear View Mirror
Components and components location

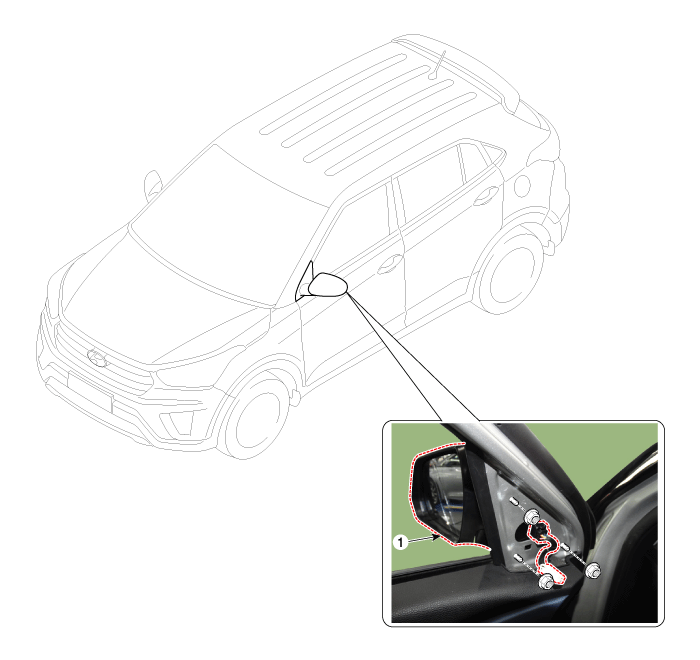

1. Outside rear view mirror
|
|
Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
| • |
Take care not to scratch the body surface.
|
|
| 1. |
Using a screwdriver or remover, remove the front door quadrant inner
cover (A).
|
| 2. |
Disconnect the outside rear view mirror connector (A).
|
| 3. |
After loosening the mounting nuts, then remove the outside rear view
mirror (A).
|
Tightening torque :
6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)
|
|
| 4. |
To install, reverse the removal procedure.
| •
|
Make sure the connector is connected properly.
|
| •
|
Replace any damaged clips.
|
|
|
