Hyundai Creta GS 2014-2025 Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Switch: Repair procedures
| Diagnosis with GDS |
| 1. |
The BCM can be diagnosed by using the GDS. The BCM communicates with
the GDS which then displays inputs and outputs along with codes.
It will be able to diagnose defects of power door lock/unlock with GDS
quickly. GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |
To diagnose the SJB function, select the vehicle model, BCM and DDM.
|
| 3. |

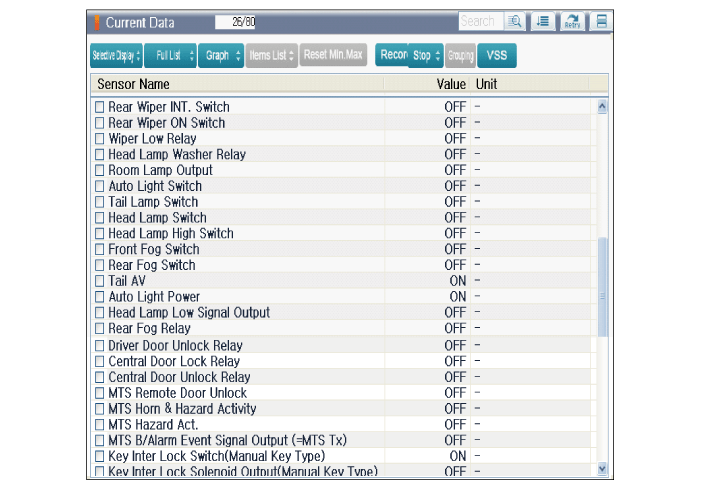

Select "Input/output Monitoring", if you will check current data of
power door lock system. It provides input/output status of DDM.
|
| 4. |

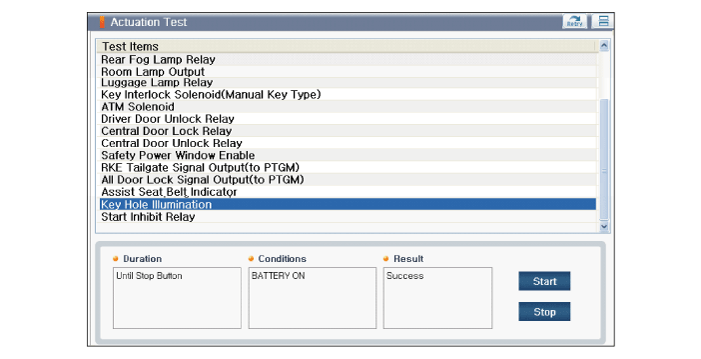

To perform functional test on SJB outputs, select "Actuation Test".
|
| Removal |
Driver Power Window Switch
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Remove the power window switch assembly (A) after loosening the mounting
screws.
|
| Installation |
Driver Power Window Switch
| 1. |
Install the power window switch assembly.
|
| 2. |
Install the front door trim after connect the connector.
|
Power Door Lock Actuators: Repair procedures
Inspection
Front Door Lock Module Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
Re ...
