Hyundai Creta: Power Door Mirrors / Power Door Mirror Switch
Hyundai Creta GS 2014-2024 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch
Schematic diagrams
| Circuit Diagram |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Remove the power mirror switch (A) from the door trim.
|
| Installation |
| 1. |
Install the power mirror switch.
|
| 2. |
Install the front door trim after connecting the connector.
|
| 3. |
Connect the negative (-) battery terminal.
|
| Inspection |
| 1. |
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
|
| 2. |
Remove the power mirror switch (A) from the door trim.
|
| 3. |

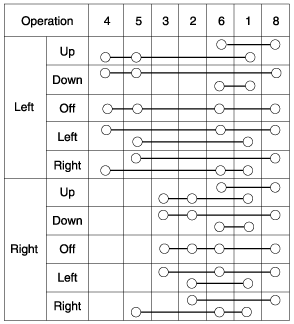

Check for continuity between the terminals in each switch position according
to the table.
[Power Mirror Switch]
[Power Folding Mirror Switch]
|
Components and components location
Component Location
1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
...
