Hyundai Creta: Injector / Purge Control Solenoid Valve (PCSV)

Description and operation

Description
Purge Control Solenoid Valve (PCSV) is a solenoid valve and is installed on the surge tank and controls the passage between the canister and the intake manifold.
The evaporative gases gathered in the canister are delivered to the intake manifold when the PCSV is open by ECM control signal.

Specifications

Specification
Item
Specification
Coil Resistance (Ω)
14.0 ~ 18.0 [20°C (68°F)]

Schematic diagrams

Circuit Diagram

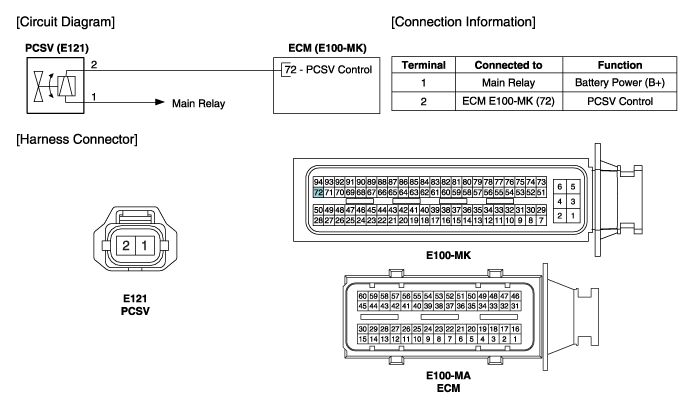

(M/T)

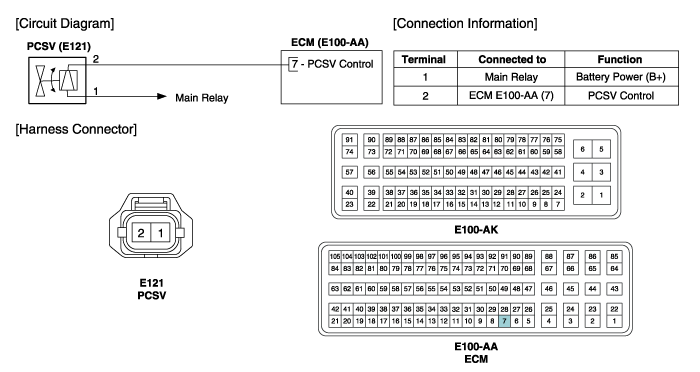

(A/T)

Repair procedures

Inspection
1.
Turn ignition switch OFF.
2.
Disconnect PCSV connector.
3.
Measure resistance between PCSV terminals 1 and 2.
4.
Check that the resistance is within the specification.
Specification : Refer to "Specification"
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Disconnect the purge control solenoid valve connector (A).
3.
Disconnect the vapor hoses (B) from the purge control solenoid valve.

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

Be careful of foreign material not to flow into the valve.
1.
Install in the reverse order of removal.
