Hyundai Creta: Front Bumper / Radiator Grill

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Bumper / Radiator Grill

Components and components location

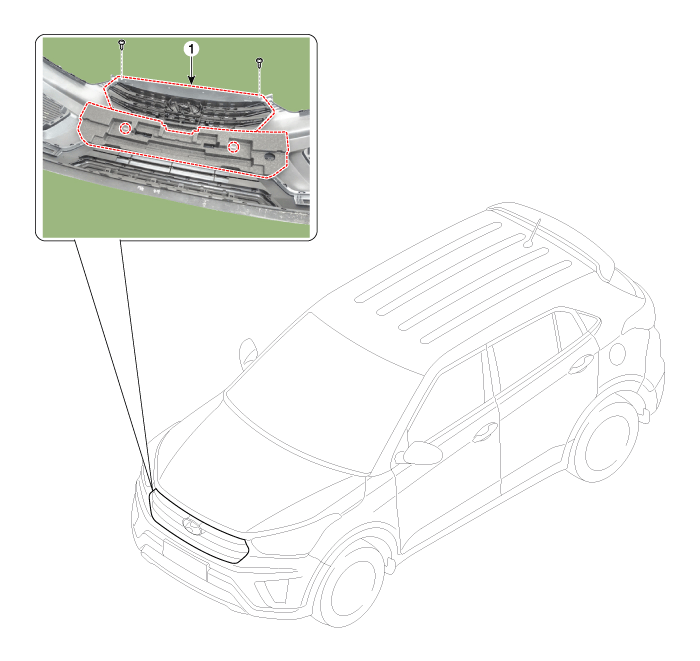

Component Location

1. Radiator grill

Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Cover")
2.
Detach the clips, then remove the front bumper energy absorber (A).
3.
Unlock the lock pins by pushing it up with a screwdriver or remover and then remove the radiator grill (B).
4.
To install, reverse the removal procedure.

•
Replace any damaged clips.
