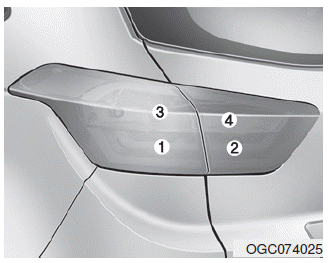

(1) Stop/Tail light
(2) Tail light
(3) Rear turn signal light
(4) Back-up light
1. Open the tailgate

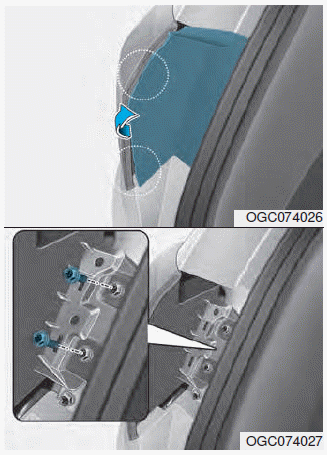

2. Loosen the light assembly retaining screws with a cross-tip screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle.

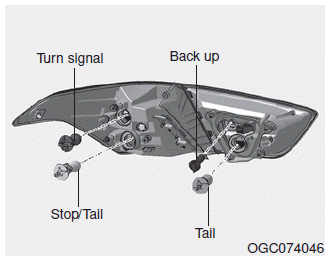

4. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.
Back-up light/Tail light
1. Turn off the engine.
2. Open the tailgate.

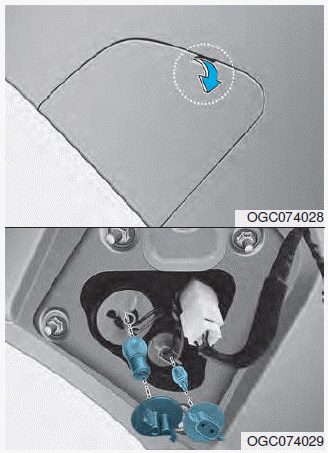

3. Remove the service cover using a flat-blade screwdriver.
4.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.
6.Insert a new bulb into the socket.
7.Install the socket into the assembly by aligning the tabs on the socket with the slots on the assembly and turning the socket clockwise.

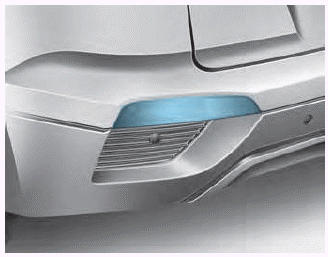

1.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
2.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.
3.Insert a new bulb in the socket.
4.Reinstall the light assembly to the body of the vehicle.
