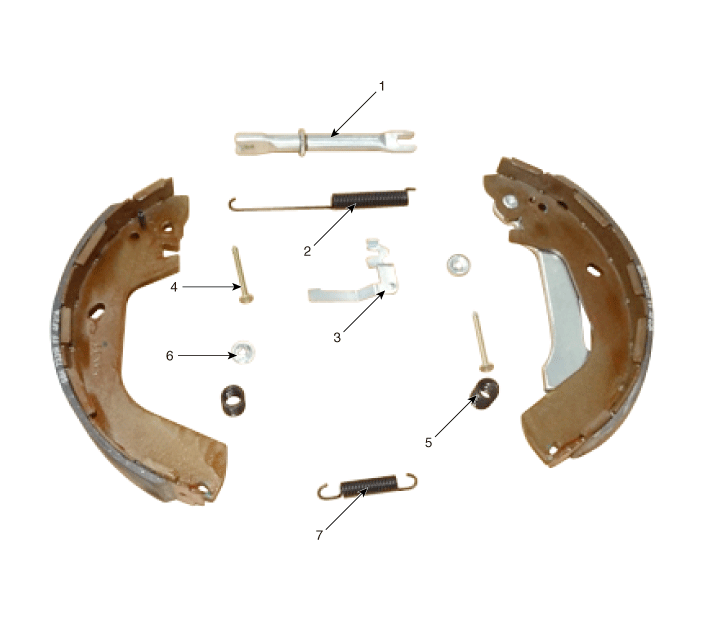

| Components |

| 1. Adjuster assembly 2. Upper return spring 3. Lever pawl 4. Shoe hold pin |
5. Shoe hold spring 6. Shoe hold washer 7. Lower return spring |
| Removal |
| 1. |
Loosen the wheel nuts slightly. Raise the vehicle, and make sure it
is securely supported.
|
| 2. |
Remove the rear wheel & tire (A).
|
| 3. |
Loosen the screw and then remove the drum.
|
| 4. |
Remove the upper shoe return spring (A), lower shoe return spring (B),
level pawl (C) and djuster assembly (D).
|
| 5. |
Remove the shoe hold assembly (A) and then remove the brake shoe.
|
| 6. |
Disconnect the parking cable.
|
| 7. |
Disconnect the brake fluid tube flare nut(A).
|
| 8. |
Loosen the mounting bolts (A) and then remove the wheel cylinder (B)
from the backing plate (C).
|
| 9. |
Loosen the hub mounting bolts (A) and then remove the backing plate.
|
| 10. |
Install in the reverse order of removal.
|
| 11. |
After installation, bleed the brake system.
(Refer to Brake System - "Brake system bleeding")
(Refer to Brake System - "ESP system bleeding")
(Refer to Brake System - "ABS system bleeding")
|
| Inspection |
|
|
| 1. |
Raise the rear of the vehicle, and make sure it is securely supported.
|
| 2. |
Release the parking brake, and remove the rear brake drum.
|
| 3. |
Check the wheel cylinder (A) for leakage.
|
| 4. |
Check the brake linings (B) for cracking, glazing, wear, and contamination.
|
| 5. |
Measure the brake lining thickness (C). Measurement does not include
brake shoe thickness.
|
| 6. |
If the brake lining thickness is less than the service limit, replace
the brake shoes as a set.
|
| 7. |
Check the bearings in the hub unit for smooth operation. If it requires
servicing, replace it.
|
| 8. |
Measure the inside diameter of the brake drum with inside vernier calipers.
|
| 9. |
If the inside diameter of the brake drum is more than the service limit,
replace the brake drum.
|
| 10. |
Check the brake drum for scoring, grooves, and cracks.
|
| 11. |
Inspect the brake lining and drum for proper contact.
|
| 12. |
Inspect the wheel cylinder outside for excessive wear and damage.
|
| 13. |
Inspect the backing plate for wear or damage.
|
