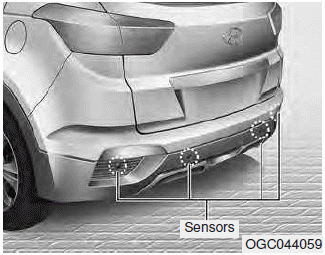

The Rear Parking Assist System aids the driver during reverse movement of the vehicle by chiming if any object is sensed within the distance of about 120 cm (47 in.) behind the vehicle.
This is a supplemental system that senses objects within the range and location of the sensors, it cannot detect objects in other areas where sensors are not installed.
WARNING
Operation condition

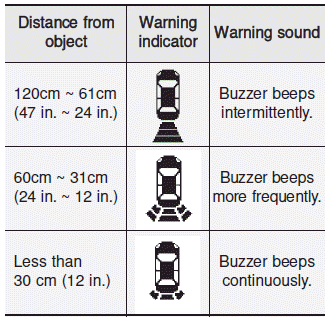

Types of warning indicator and sound
NOTICE
If this occurs, we recommend that the system be checked by an authorized HYUNDAI dealer.
The rear parking assist system may not operate normally when:
There is a possibility of a parking assist system malfunction when:
Detecting range may decrease when:
The following objects may not be recognized by the sensor:
Information
The system may not recognize objects less than 30 cm (12 in.) from the sensor, or it may sense an incorrect distance.
NOTICE
Do not push, scratch or strike the sensor with any hard objects that could damage the surface of the sensor. Sensor damage could occur.
WARNING
Your new vehicle warranty does not cover any accidents or damage to the vehicle or injuries to its occupants due to a rear parking assist system malfunction. Always drive safely and cautiously.
