Hyundai Creta: Interior Trim / Rear Pillar Trim
Components and components location
Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
|
| 2. |
After loosening the mounting bolt, then remove the rear seat belt lower
anchor (A).
|
| 3. |
After loosening the mounting bolts, then remove the rear pillar trim
(A).
|
| 4. |
To install, reverse the removal procedure.
| •
|
Replace any damaged clips.
|
|
|
Components and components location

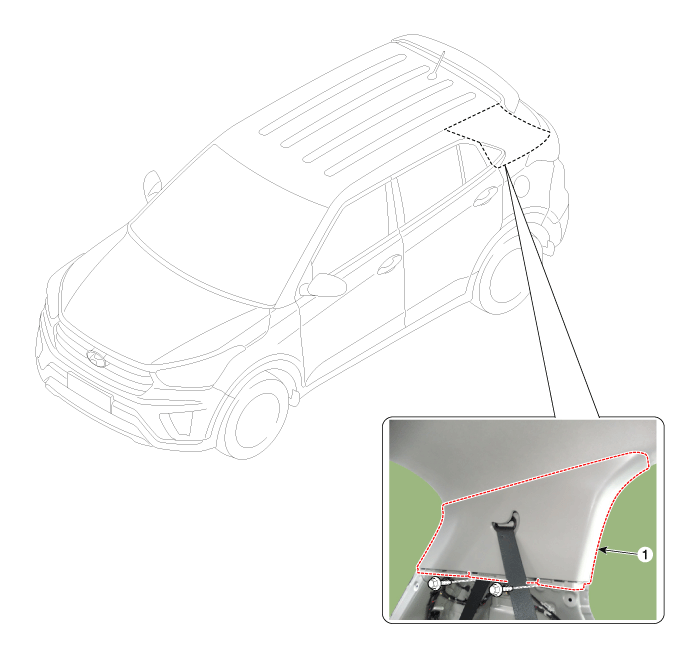

Component Location
1. Luggage side trim
Repair procedures
Replacement
& ...
