Hyundai Creta: Rear Seat / Rear Seat Back Cover

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Back Cover

Components and components location

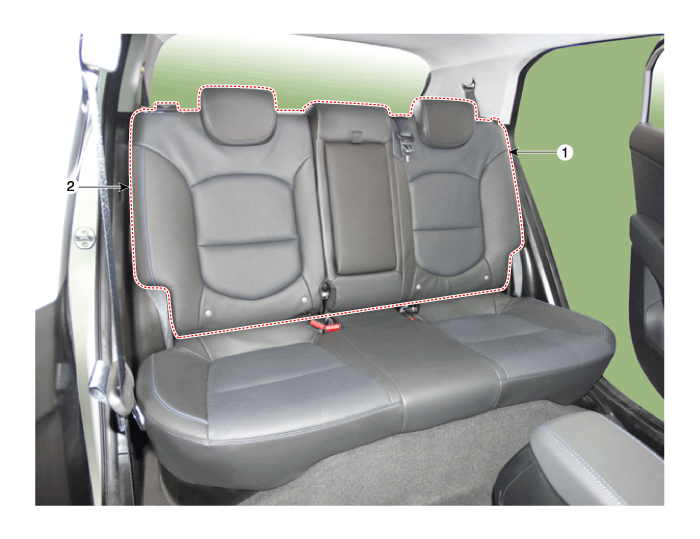

Component Location

1. Rear seat back cover [LH]

2. Rear seat back cover [RH]

Repair procedures

Replacement

[6:4 Back folding type]

(LH)

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat back assembly [LH]. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Push the lock pin (B), remove the rear seat headrest (A).

3.	Using a screwdriver or remover, remove the rear center seat belt upper anchor cover (A).

4.	Using a screwdriver or remover, remove the rear seat folding cover (A).

5.	Remove the carpet back panel [LH] (A).

6.	Using a screwdriver or remover, remove the armrest spacer (A).

7.	Remove the rear armrest (B) from the rear seat back assembly.

8.	Turn the rear seat back cover inside out. Then pull out the headrest guides (A) while pinching the upper part of the guides, and remove them.

9.	Remove the rear seat back cover (A) from the rear seat back frame.

10.	After removing the hog-ring (A) on the rear of seat back and remove the rear seat back cover (B).

11.

To install, reverse the removal procedure.

•	To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the clips (A).

•	Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

(RH)

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the second row seat assembly [RH]. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Push the lock pin (B), remove the rear seat headrest (A).

3.	Using a screwdriver or remover, remove the rear seat folding cover (A).

4.	Remove the carpet back panel [RH] (A).

5.	Remove the protector (A) located in the side part of the rear seat back.

6.	Turn the rear seat back cover inside out. Then pull out the headrest guides (A) while pinching the upper part of the guides, and remove them.

7.	Remove the rear seat back cover (A) from the rear seat back frame.

8.	After removing the hog-ring (A) on the rear of seat back and remove the rear seat back cover (B).

To install, reverse the removal procedure.

•	To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the clips (A).

•	Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

[Banch seat type]

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat back assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Using a screwdriver or remover, remove the armrest spacer (A).

3.	Remove the rear armrest (B) from the rear seat back assembly.

4.	Push the lock pins (B), and remove the rear seat headrest (A).

5.	Remove the rear seat folding knob (A) after turning in the counter clock-wise direction.

6.	After loosening the mounting screw, remove the rear back fold guide bezel (A).

7.	Zip off the rear seat back cover (A), and then full it up.

8.	After removing the hog-ring clips on the rear of seat back and remove the rear seat back cover (A). [Rear side]

9.	Pull out the rear seat headrest guides (A) while pinching both sides of the lower part of the guides, and remove them.

10.	After removing the velcro tape (A) and clips (B) on the front of seat back and remove the rear seat back cover (C). [Front side]

11.

To install, reverse the removal procedure.

•	After removing the hog-ring clips (A) inside the rear seat cushion cover, remove the rear seat cushion cover (B).

•	Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
