Components and components location

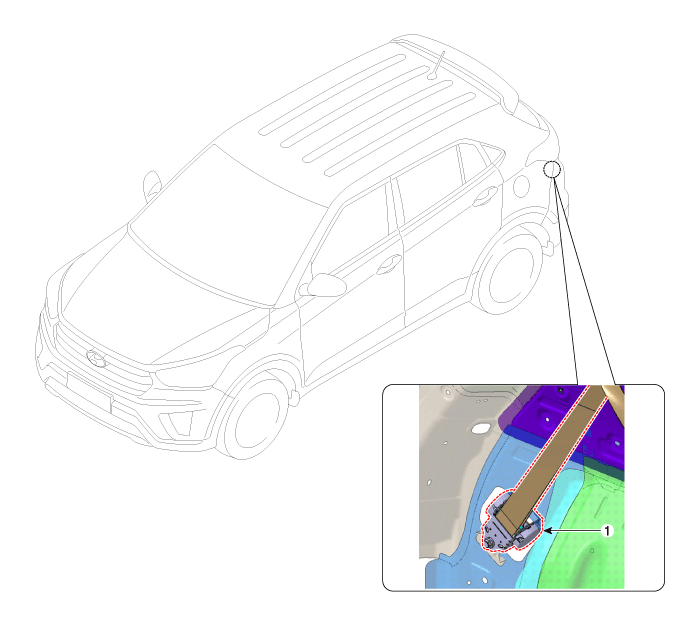

Component Location

1. Rear seat belt retractor

Repair procedures

Replacement

•	When installing the belt, make sure not to damage the retractor.

1.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Pillar Trim")

After loosening the mounting bolt, then remove the second row seat belt upper anchor (A).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

After loosening the mounting bolt, then remove the second row seat belt retractor (A).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

To install, reverse the removal procedure.

•	Replace any damaged clips.
