Hyundai Creta: Interior Trim / Rear Transverse Trim

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Transverse Trim

Components and components location

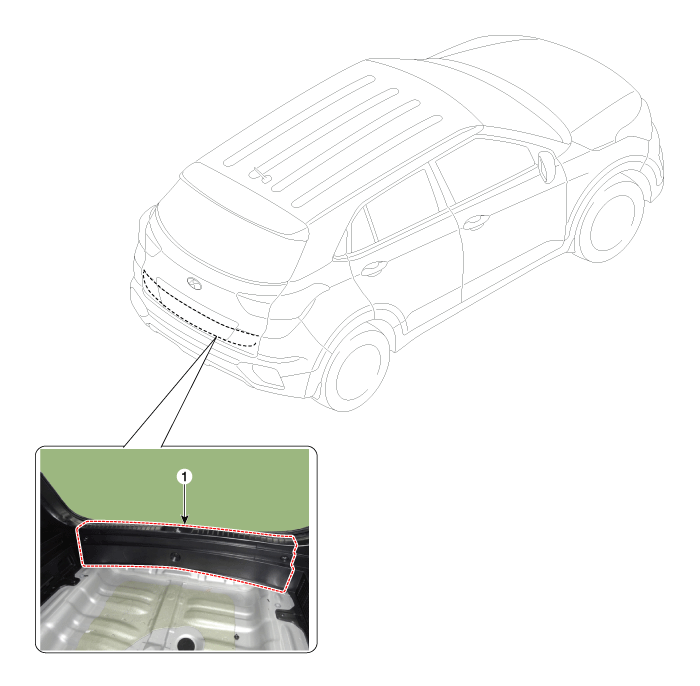

Component Location

1. Rear transverse trim

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the luggage board (A).

2.	Remove the rear transverse trim (A) after loosening the mounting clips.

To install, reverse the removal procedure.

•	Replace any damaged clips.
