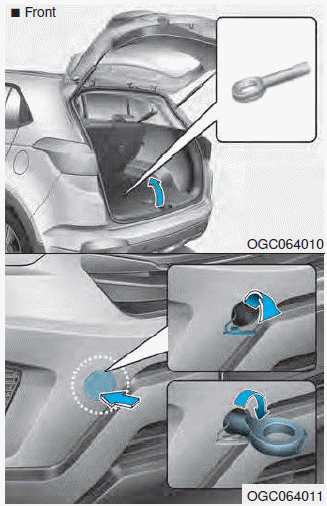

1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the front bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully secured.

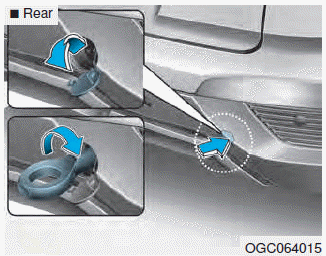

4. Remove the towing hook and install the cover after use.
Hyundai Creta GS 2014-2024 Service Manual: Piston and Connecting Rod
Components and components location
Components
1. Piston ring (#1)
2. Piston ring (#2)
3. Oil ring
4. Piston
5. Piston pin
6. Connecting rod
7. Connecting rod upper bearing
8. Connecting rod lower bearing
9. Connecting rod bearing cap
...
Hyundai Creta GS 2014-2024 Owners Manual: Parking brake
Always set the parking brake before
leaving the vehicle, to apply:
Firmly depress the brake pedal.
Pull up the parking brake lever as far
as possible.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, do not operate
the parking brake while the
vehicle is moving except in an
em ...
