Hyundai Creta: Ignition System / Repair procedures
| Inspect ignition coil
assembly and Perform spark test |
| 1. |
Check for DTCs.
| •
|
If a DTC is present, perform troubleshooting in accordance
with the procedure for that DTC. (Refer to DTC guide)
|
|
|
| 2. |
Check if sparks occur.
| (1) |
Remove the engine cover.
|
| (2) |
Remove the ignition coils.
|
| (3) |
Using a spark plug wrench, remove the spark plugs.
|
| (4) |
Disconnect the 4 injector connectors.
|
| (5) |
Ground the spark plug to the engine.
|
| (6) |
Check if sparks occur at each spark plug while engine is being
cranked.
|
| •
|
Do not crank the engine for more then 5 seonds.
|
|
|
| 3. |

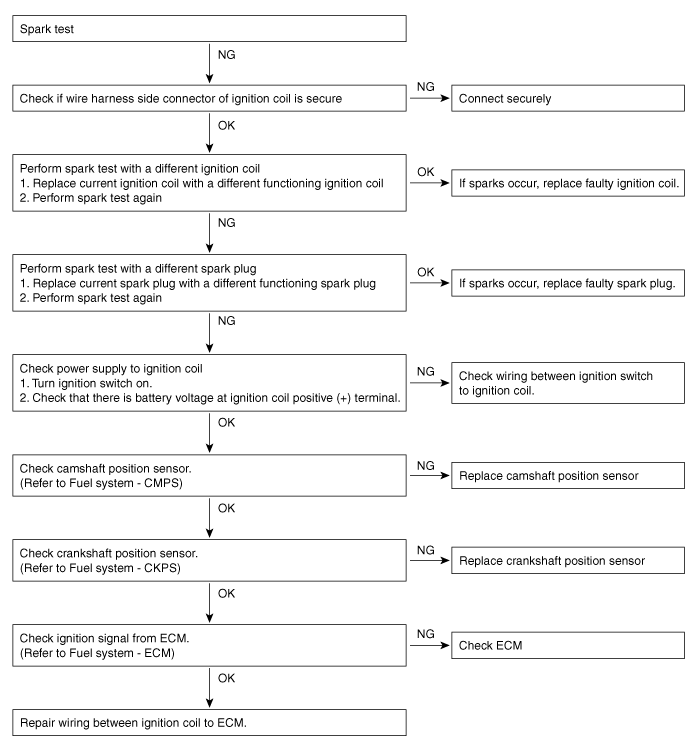

If sparks do not occur, perform the following test.
|
| 4. |
Using a spark plug wrench, install spark plugs.
|
| 5. |
Install the ignition coils.
|
| 6. |
Install the engine cover.
|
Description
Ignition timing is controlled by the electronic control ignition timing system.
The standard reference ignition timing data for the engine operating conditions
are ...
Description and operation
Description
An ignition coil is an induction coil in an engine's ignition system which transforms
the battery's low voltage to the high voltage ne ...
