Hyundai Creta: Hood / Repair procedures
| Adjustment |
| 1. |

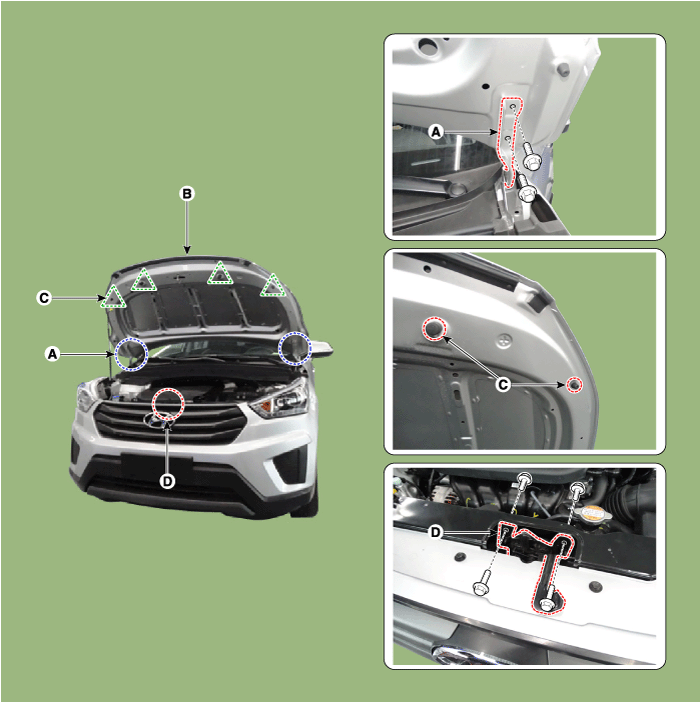

After loosening the hinge (A) mounting bolt, adjust the hood (B) by
moving it up or down, or right or left.
|
| 2. |
Adjust the hood height by turning the hood overslam bumpers (C).
|
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the latch
by moving it up or down, or right or left.
|
Hood
...
Hood Assembly
Components and components location
Component Location
1. Hood assembly
Repair procedures
Replacement
...
Other information:
Hyundai Creta GS 2014-2025 Service Manual: Hazard Lamp Switch: Repair procedures
Inspection
1.
The SJB can be diagnosed by using the GDS. The SJB communicates with
the GDS which then displays inputs and outputs along with codes.
It will be able to diagnose defects of hazard lamp switch with GDS quickly.
GDS can operates actuator ...
Hyundai Creta GS 2014-2025 Service Manual: Front Wiper Motor
Components and components location
Component Location
1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector
Repair procedures
Removal
...
