Hyundai Creta: Tail Gate / Repair procedures

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Tail Gate / Repair procedures

Adjustment

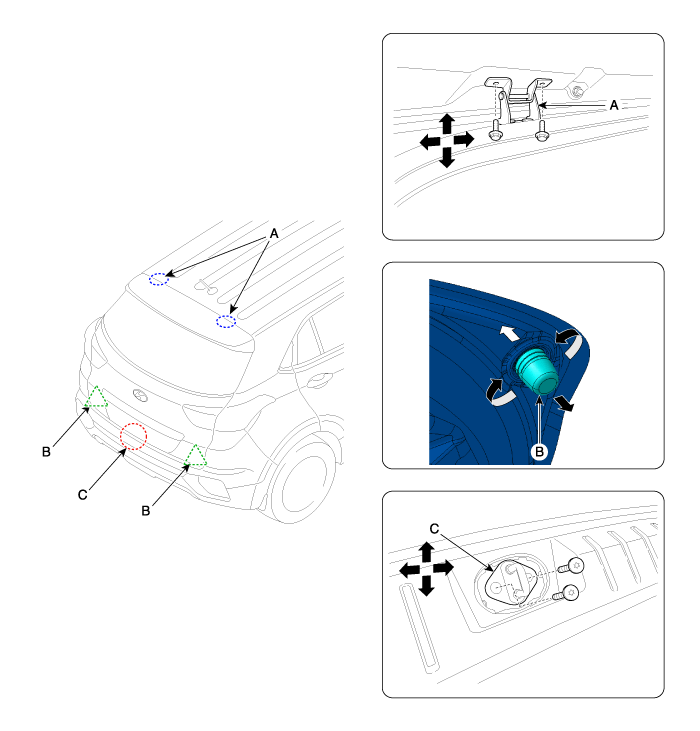

1.	After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up or down, or right or left.

2.	Adjust the tail gate height by turning the tail gate overslam bumpers (B).

3.	Remove the rear transverse trim. (Refer to Interior Trim - "Rear Transverse Trim")

4.	After loosening the tail gate striker (C) mounting bolts, adjust the tail gate striker by moving it up or down, or right or left.
